Magician Chassis ROHS

Magician Chassis ROHS
  • Stock: In Stock
  • Model: DG007-L
  • Weight: 1.00kg

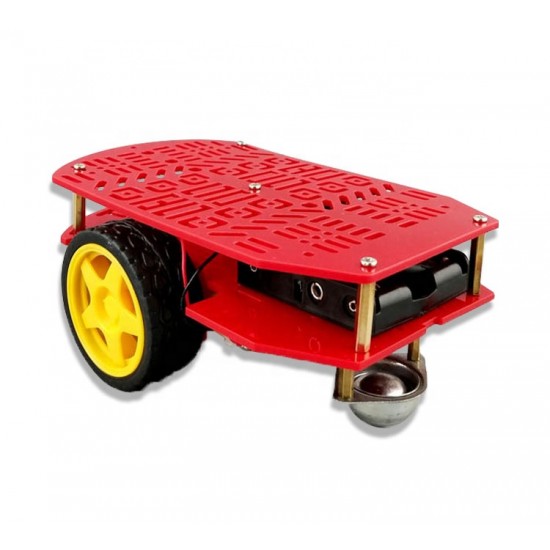

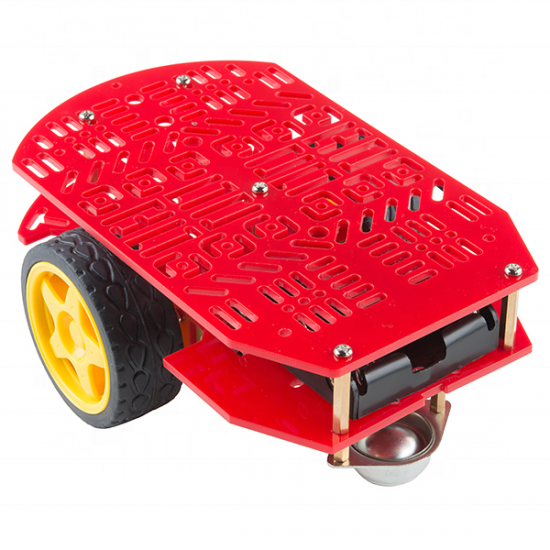

DG007-L 2-wheel robot chassis: the starting point for your Dagu robot!

The DG007-L 2-wheel robot chassis is one of the most important components of the Dagu mobile robot.


Magician Chassis for Dagu robots consists of:

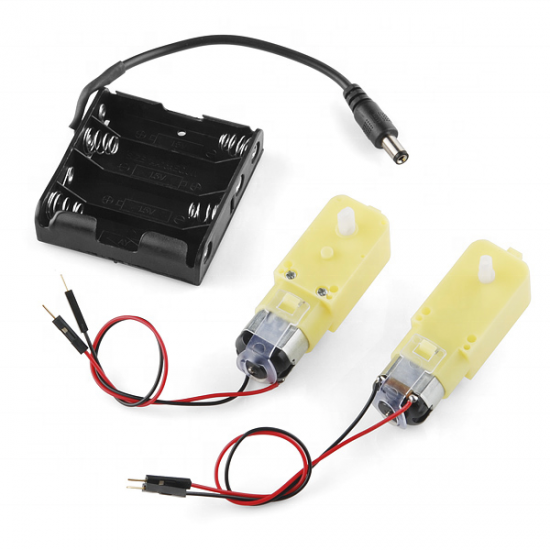

2*DG01D 48:1 gearmotors

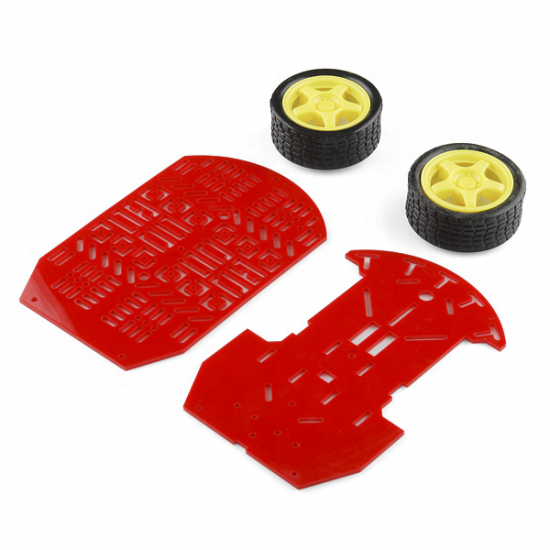

2*wheels with rubber tyres

1*omni wheel

1*battery holder

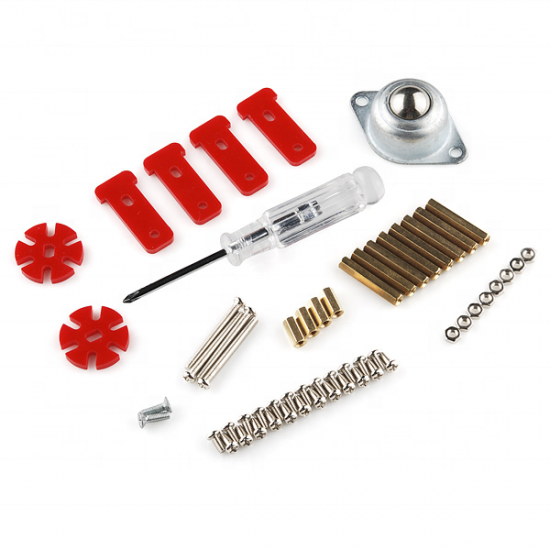

Tool and accessroies needed for assembly

The chassis comes unassembled, along with illustrated assembly instructions.


Uses for the Dagu robot chassis

The Magician chassis is ideal for use in your Dagu robot projects. Once your chassis has been assembled, you can equip it with sensors and actuators to make it more intelligent and autonomous.

It can be remote controlled, so together you can take part in some of the most challenging competitions (speed, line-following, etc.). Why not check out all the Dagu-compatible components available from our site now to being building your own programmable robot!


Technical specifications of the Magician Chassis

Supply: 4.5V DC (batteries not included)

Speed: ±1.3km/h @6V DC

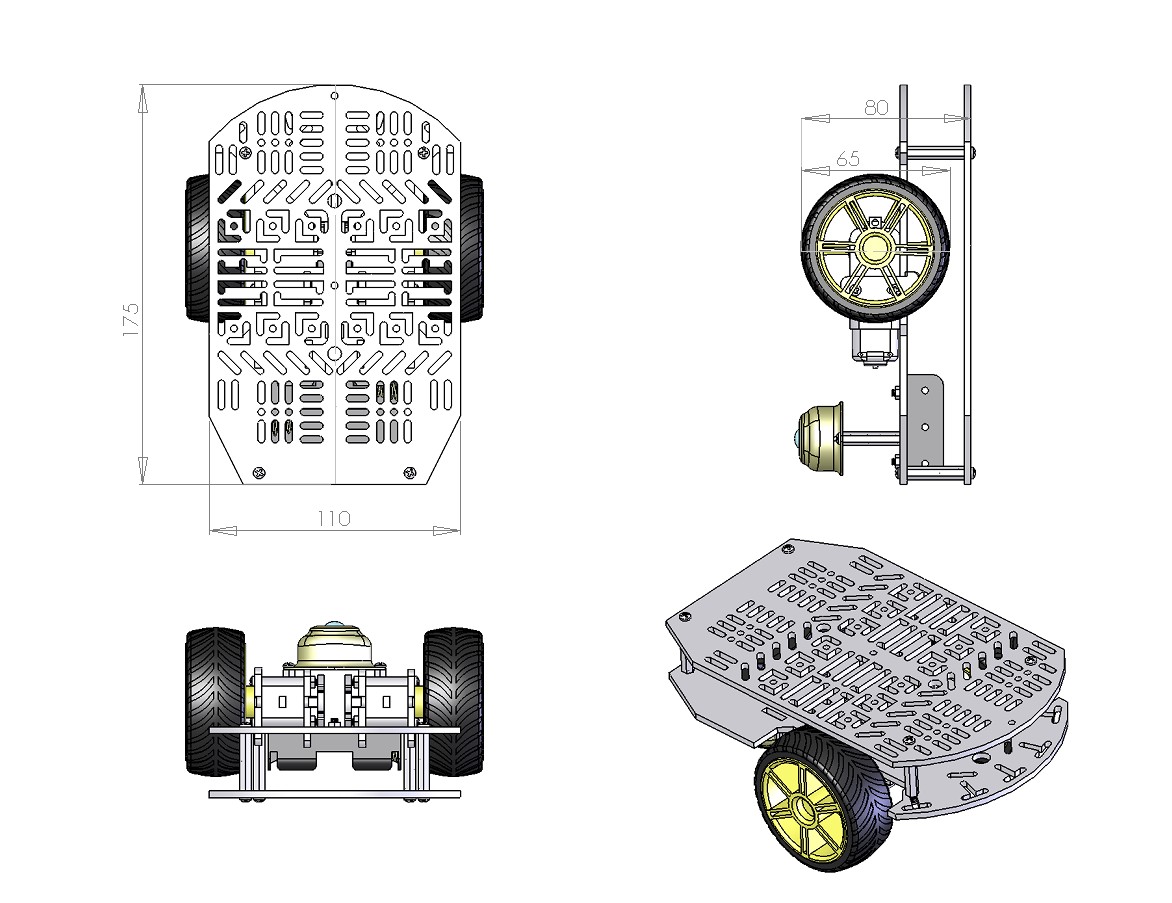

Dimensions: 175*110*70mm

Wheel diameter: φ65*25mm


No-load speed: 90±10rpm

Starting current: 1A
