Omni-directional ball bearing wheels allow you to design your own omni-directional robot kits.
Can be equipped with 100 mm double nylon rubber omnidirectional wheel four-wheel drive learning platform, omni wheels type mobile platform.
It is mounted along its condition and roller roller to prevent slippage.
The 100mm double plastic omnidirectional wheel is used for robots, trolleys, transfer conveyors, transport carts, and luggage.

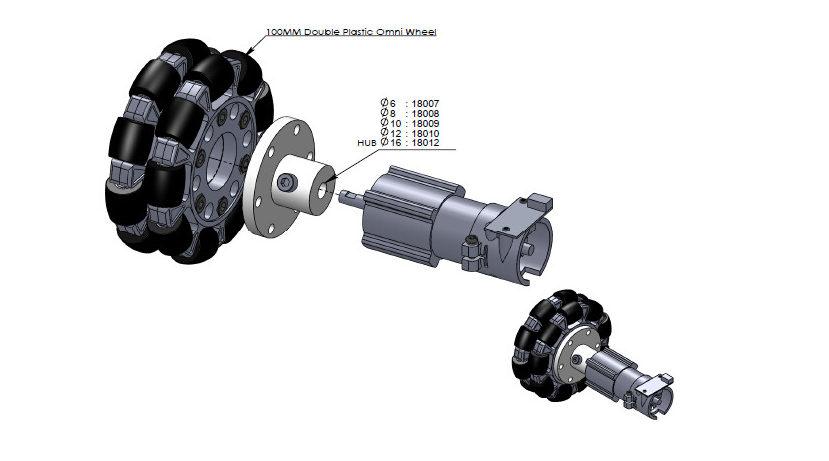

It can be mounted directly on the standard hub with any axis.
Main feature:
Simple and stable installation options
Unique fixed direction
Excellent load capacity
Please turn quickly
Full range of motion and rotation
This is an omnidirectional ball bearing wheel that allows you to design your own omnidirectional robot. Can be equipped with 100 mm double nylon rubber omnidirectional wheel four-wheel drive learning platform, omnidirectional wheeled mobile platform.
It is mounted along its condition and roller roller to prevent slippage.
The 100mm double plastic omnidirectional wheel is used for robots, trolleys, transfer conveyors, transport carts, and luggage.
It can be mounted directly on the standard hub with any axis.
Product specification:
Diameter: 100mm
Axial width: 35 mm
Number of discs: 2
Number of rollers: 18
Body material: nylon
Roller material: rubber
Roll diameter: 19mm
Net weight: 320g
Load capacity: 20KG
