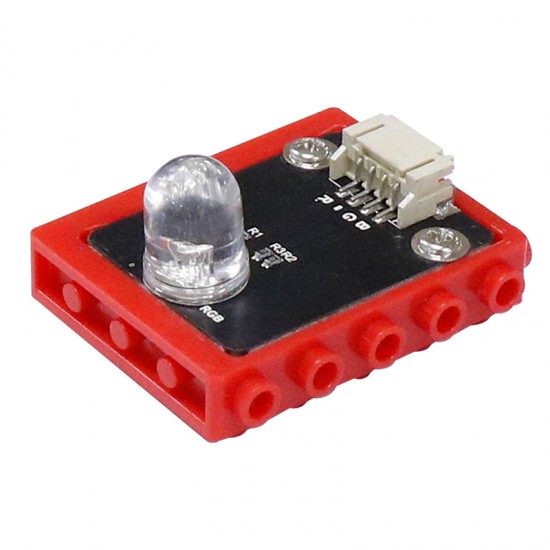

RGB LED Module for Light
Explore the RGB LED Module for Light from dagurobot. Our module offers awide range of colors and high quality lighting effects, perfect for various lightingapplications. Get the best RGB LED module for your lighting needs with dagurobot.
$2.28
Quantity
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Specifications
Code
：
HC125
Brand
：
DAGU
Detail
RGBW 6812LED Module for steam education
Product description:
RGB LED consists of 3 leds. Each led has a red light, a green light and a bluelight. These three colors leds can produce any color. The RGB LED has red,green and blue light transmitters and is usually connected to a common lead(anode or carthode) using three wires. The module is a commong cathode led.
Parameters:
Working voltage: 3V~5V
Input type: PWM. The value (0~255) is input into RDDB three interfaces asdigitial value. The color of RGB LED is controled by PWM.
Interface mode: pH2.0~4P
Module size: 24*25mm
Module weight: 49g

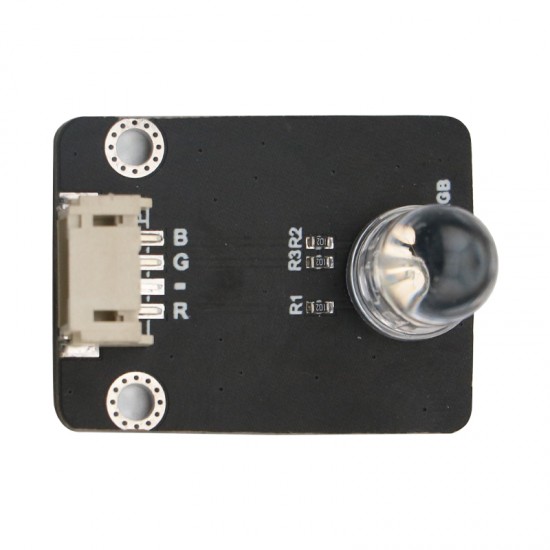

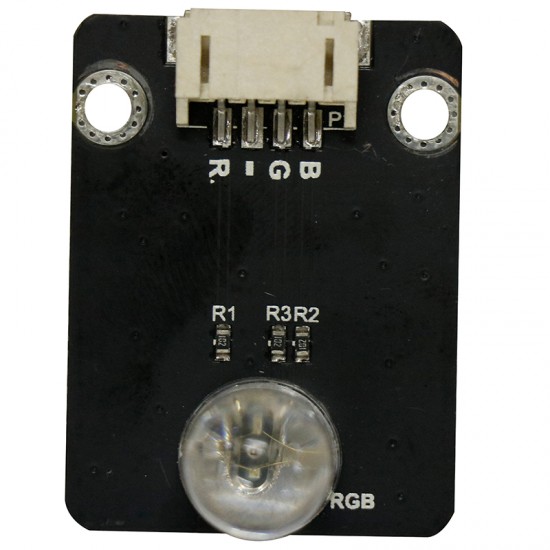

Pindefinition:
B: Blue light input
G: Green light input
-: GND
R: Red light input
