RGBW 6812 LED Module for Steam Education

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Explore the RGBW 6812 LED Module for Steam Education from dagurobot.This high - quality module is perfect for STEAM education, offering unique features andexcellent performance to enhance learning experiences.
$2.60
Quantity
Add to Cart
BUY
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Prev: RGB LED Module for Light
Next: robotsoldier with McNamm Wheel
Specifications
Code
：
HC117
Brand
：
DAGU
Detail

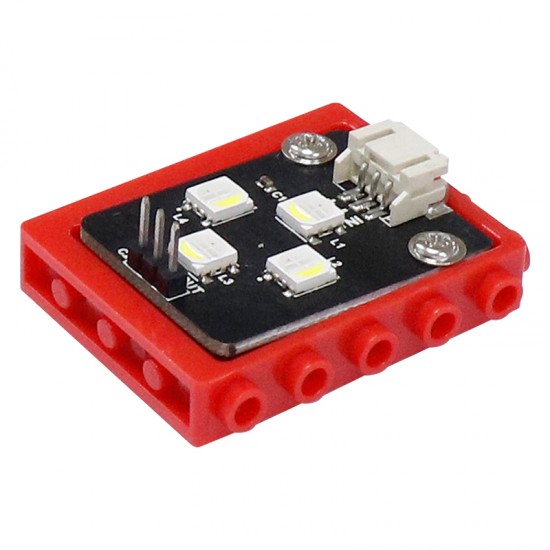

RGBW 6812LED Module for steam education

Product description:
Sk6812rgbw is an intelligent external LED light source which integrates controlcircuit and light-emitting circuit. Its appearance is the same as a 5050 LEDlamp bead, and each element is a pixel point. It is mainly applicable to LEDfull-color lamp string, led full-color module, led magic color soft and hardlamp belt, LED guardrail tube, led appearance / scene lighting, LED point lightsource, LED pixel screen, led special-shaped screen, various electronicproducts, electrical equipment running lamps.

Parameters:
Working voltage: 3V~5V
LED: SK6812RGBW
Gray scale: 256
Luminous angle: 180 degrees
Light color: red, green, blue, white
Input type: PWM.
Interface mode: pH2.0~3P
Module size: 34*25mm
Module weight: 40g

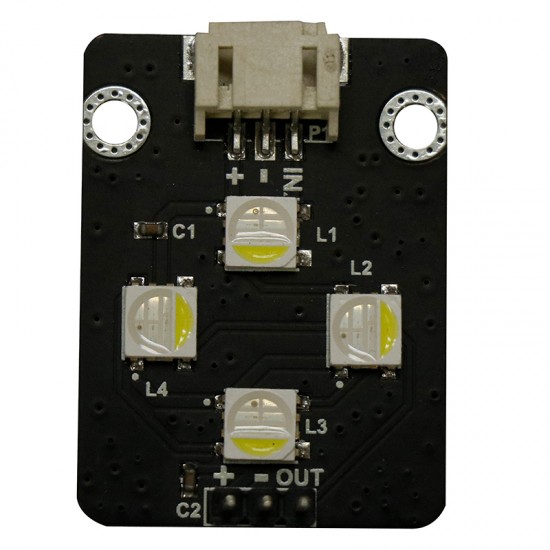

Pin definition:

In

Input Pin

-

GND

+

VCC
