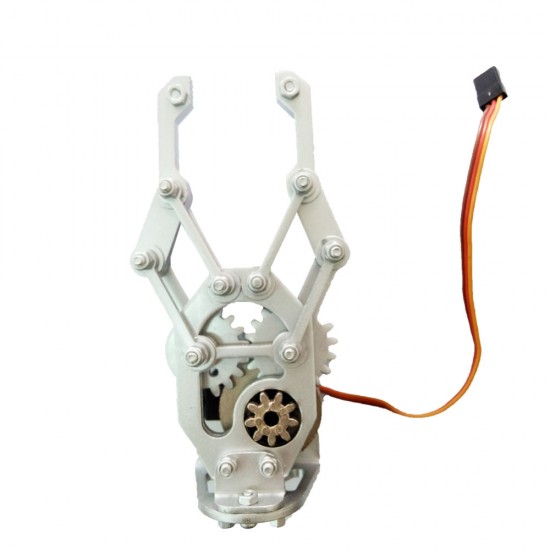

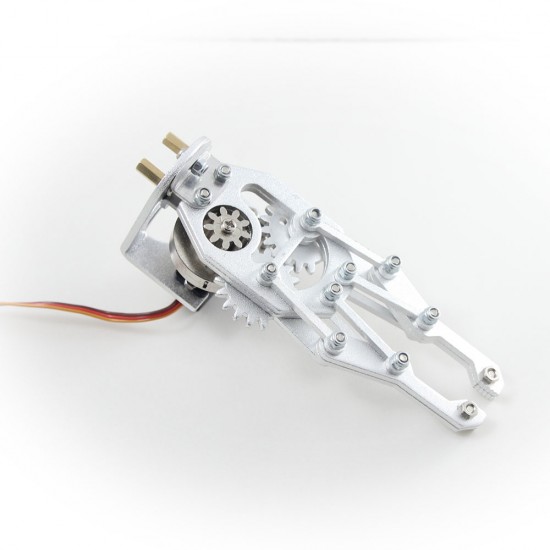

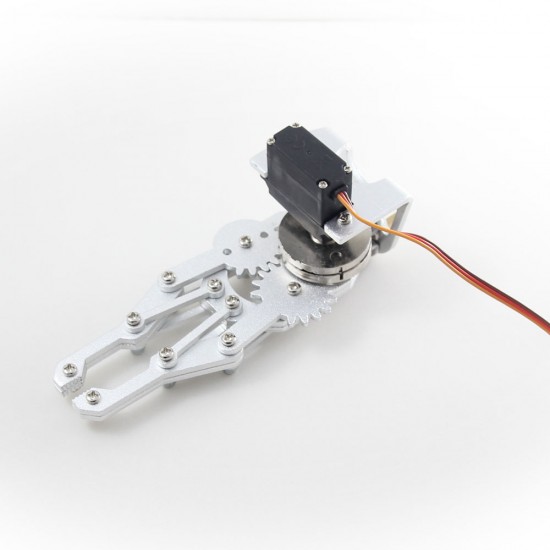

DAGU MK II Robotic Claw Product Introduc
tion
The DAGU Mechanical 2013 MK II Robotic Claw is a high-performance, cost-effective end effector specifically designed for small robotic arms. As a professional robot arm accessory, it comes standard with 1 S05NF STD servo and complies with the ROHS environmental protection standard, making it perfectly compatible with popular maker platforms such as Arduino and Raspberry Pi. It is widely applicable in maker projects, educational experiments, small-scale automation, and other scenarios, easily meeting the needs of object clamping, placing, and simple operation tasks.
Core Specifications
Model: RS026 (DAGU Mechanical 2013)
Drive Mode: 1 Degree of Freedom (1 DOF), equipped with 1 S05NF STD servo as standard
Material: 3mm thick aluminum alloy, featuring high rigidity, durability, and light weight
Transmission Method: Belt-driven (Belt Gripper), ensuring quiet operation and low impact during movement
Maximum Opening Width: Approximately 8cm (2 inches)
Control Interface: Standard PWM signal, compatible with mainstream controllers like Arduino
Operating Voltage: 4.8V - 6V
Net Weight: About 180g
Price: $34.80
Certification: ROHS compliant, meeting international environmental protection requirements
S05NF STD Servo Details
The equipped S05NF STD servo is a medium-sized metal gear servo, which provides reliable power support for the robotic claw. Its key parameters are as follows:
Torque: 2.79 kg·cm at 4.8V, 3.19 kg·cm at 6V
Speed: 0.20 s/60° at 4.8V, 0.18 s/60° at 6V
Rotation Angle: Approximately 180°, supporting precise angle control
Gear Material: Metal, ensuring wear resistance and long service life
Cable Length: About 18cm, with a standard connector for easy connection
Weight: 20g, lightweight and compact without increasing the overall burden of the robotic arm
Product Features
1. Reinforced Structural Design
The joints of the robotic claw are embedded with brass bushings, which significantly enhance the rigidity of the structure, prevent loosening during long-term use, and extend the service life of the product. The bottom is integrated with a standard servo mounting plate, allowing direct fixation to robotic arms or mobile platforms without additional drilling or modification, greatly improving installation efficiency.
2. Protective & Efficient Performance
Equipped with a spring-loaded clutch, the robotic claw can effectively protect the servo gears from damage caused by excessive force, while increasing the gear ratio to 2:1. This design not only ensures the servo can exert its full range of motion but also enhances the gripping force, enabling the claw to pick up relatively heavy objects steadily.
3. User-Friendly & Versatile
With a simple and intuitive control method, the robotic claw can be easily controlled through Arduino or other controllers, making it suitable for both beginners and experienced makers. The belt-driven design ensures smooth and quiet operation, avoiding noise interference in indoor or precision operation scenarios. Additionally, it can be refitted according to actual needs to complete more complex tasks.
4. Environmental & Reliable
Adhering to the ROHS environmental protection standard, the product is free of harmful substances, making it safe for use in educational and indoor environments. The high-quality aluminum alloy material and metal gear servo ensure stable performance, allowing the robotic claw to maintain reliable operation even in long-term continuous use.
Application Scenarios
Maker projects: Compatible with Arduino, Raspberry Pi and other platforms, ideal for DIY robotic arm projects
Educational experiments: Suitable for robotics courses and technical training, helping students understand mechanical transmission and servo control
Small-scale automation: Can be used in small automated equipment to complete simple clamping and placing tasks
Hobby & entertainment: Perfect for enthusiasts to build their own robotic devices and experience the fun of robotics
The DAGU MK II Robotic Claw combines durability, precision and ease of use, providing a high-quality solution for various robotic arm applications. With its reliable performance and affordable price, it is the first choice for makers, educators and robotics enthusiasts.
