The Dagu Robot Rover 5 Chassis is a ROHS-compliant, 2WD tracked robot chassis without encoders (model RS011-2/0, alternative part numbers ROB-2206 and DAGU-RS011-2), measuring 245mm × 225mm × 74-75mm and weighing approximately 3.0kg, powered by 6 AA batteries (not included) with a 7.2V rated motor, 86.8:1 gearbox ratio, and maximum speed of 25cm/s; it features adjustable ground clearance, high-elastic rubber treads, built-in noise suppression coils, cost-effective design, easy expansion with Pololu RP5 expansion plates, and durable rugged plastic construction, suitable for makers, students, educational projects, autonomous robot prototypes, remote-controlled tank assembly, and DIY electronics, with a package including the chassis, 2 DC motors with gearboxes, battery holder, mounting hardware, and tools (excluding encoders, controllers, and additional sensors).
$28.00
Quantity
Add to Cart
BUY
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Prev: Dagu robot Infrared sensor module - general car original , ir sensor , line acessorios ROHS
Next: Dagu robot Rover 5 chassis with 2 encoders accessories ROHS
Specifications
Code
：
RS011-2/0
Brand
：
DAGU
Detail

Dagu Robot Rover 5 Chassis (0 Encoder, RO

HS Compliant) Product Introduction

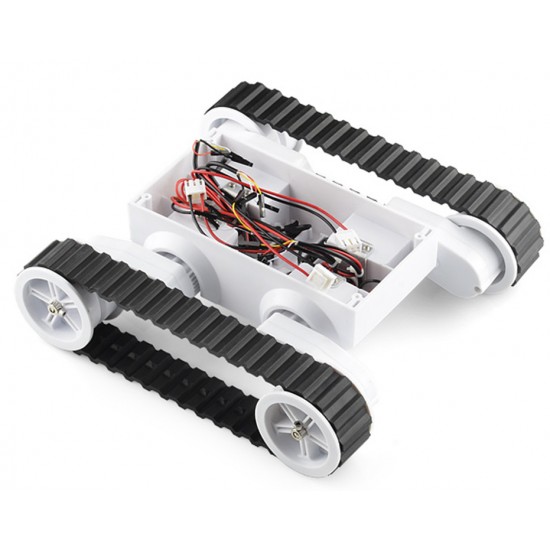

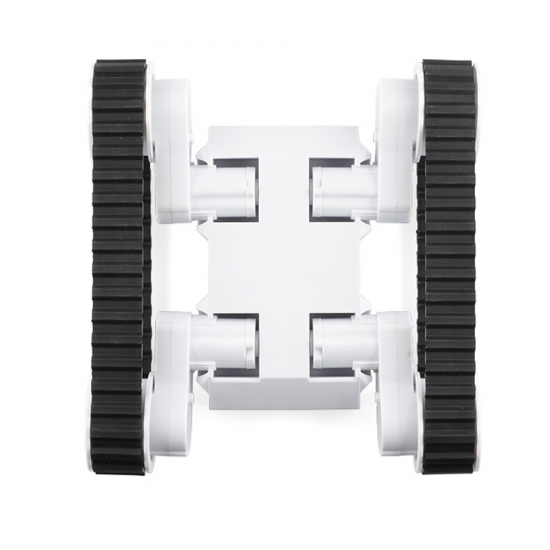

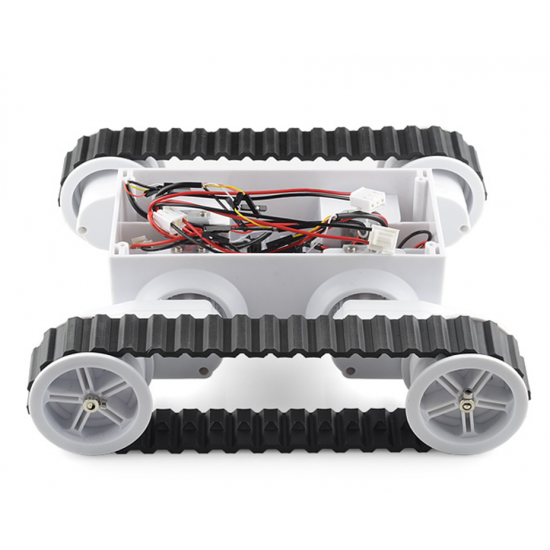

The Dagu Robot Rover 5 Chassis (0 Encoder Accessories, ROHS Compliant) is a high-quality tracked robot chassis designed and manufactured by Dagu, tailored for makers, students, educational institutions, and robotics R&D projects. With its robust structure, flexible adaptability, and compliance with ROHS environmental standards, it serves as an ideal basic platform for building small tank-like remote-controlled vehicles or autonomous robots.

Product Overview

This chassis is a 2WD (two-wheel drive) tracked model without encoders (0 encoder), which effectively reduces the overall cost while maintaining reliable performance for basic robotics applications. It features a compact and durable design, equipped with two independent DC motors and a unique adjustable gearbox mechanism, making it suitable for various indoor and outdoor scenarios, including uneven terrain exploration and educational robot assembly.

Key Specifications

  • Model Number: RS011-2/0 (Gray Version available); Alternative Part No.: ROB-2206, DAGU-RS011-2

  • Dimensions: 245mm × 225mm × 74-75mm (default flattened configuration) / 9.5" × 9" × 3" (imperial)

  • Weight: Approximately 3.0kg (varies slightly by version); Alternative weight: 2.5kg, 0.72kg (1.6lb)

  • Drive System: Dual-motor independent drive (2WD); Expandable to 4WD for mecanum wheel applications

  • Gearbox Ratio: 86.8:1 (or 87:1 approximate)

  • Motor Parameters: Rated voltage 7.2VDC; Stall current 2.4-2.5A; Free-run current 210mA; Output shaft stall torque 10kg/cm; Motor speed up to 8,500rpm

  • Maximum Speed: Approximately 25cm/s (10in/s) at 7.2V, equivalent to 1km/hr

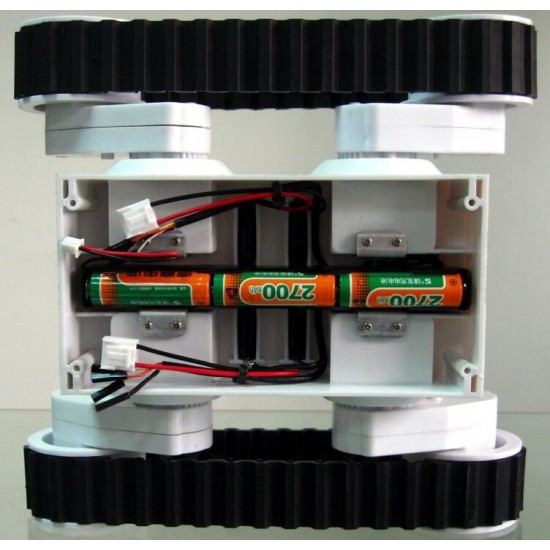

  • Power Supply: 6 AA batteries (not included); Battery holder included; NiMH batteries are recommended for longer service life and higher current output

  • ROHS Compliance: Fully meets ROHS environmental standards, ensuring safe and eco-friendly use in various scenarios

Core Features

  • Adjustable Ground Clearance: The gearbox angle can be adjusted in 5-degree increments by unscrewing the internal metal bracket, allowing the chassis height to vary by nearly 3.8cm (1.5"). This unique design enables the chassis to adapt to different terrains and application needs.

  • High-Elastic Rubber Treads: Equipped with stretchy rubber tracks that maintain stable tension even when the gearbox angle and ground clearance are adjusted, ensuring excellent grip and smooth movement on various surfaces, including uneven terrain.

  • Noise Suppression: Built-in 4 noise suppression coils at the bottom, effectively reducing electromagnetic interference and ensuring stable operation of the motors and external electronic components.

  • Cost-Effective Design: Without encoders, this version offers a more budget-friendly option for users who do not require precise speed or position control, suitable for basic robotics projects, educational training, and hobbyist use.

  • Easy Expansion: Compatible with Pololu's RP5 chassis expansion plates (both narrow and wide versions), making it convenient to mount controllers, sensors, wireless modules, servos, and other electronic components. A small Phillips screwdriver and an Allen wrench are included for easy assembly and modification.

  • Durable Construction: Made of rugged plastic (available in gray or white) with a sturdy structure, capable of supporting the weight of additional electronics and withstanding mild impacts during operation.

Application Scenarios

Ideal for a wide range of applications, including but not limited to:

  • Educational robotics projects for students and hobbyists

  • Prototype development of autonomous robots and inspection rovers

  • Remote-controlled tank-like vehicle assembly

  • Makerspace projects, robotics competitions, and DIY electronics

  • Basic terrain exploration and experimental robotics research

Package Information

The package includes 1 Dagu Rover 5 2WD tracked chassis (without encoders), 2 DC motors with gearboxes, 1 battery holder (for 6 AA batteries, batteries not included), high-elastic rubber treads, mounting hardware, a small Phillips screwdriver, and an Allen wrench. It does not include encoders, controllers, or additional sensors.
As a cost-effective and reliable robot chassis, the Dagu Rover 5 (0 Encoder, ROHS Compliant) balances performance and affordability, making it the perfect choice for anyone looking to start their robotics journey or complete basic robotics projects with ease.
