Electric Module Eeprrom Sensor Module for Arduino
Explore the Electric Module Eeprrom Sensor Module for Arduino fromDagurobot. Ideal for Arduino projects, offering reliable performance and advanced features.Enhance your projects with this top - notch sensor module.
$4.66
Quantity
1 items selected,Total $4.66
sales@dagurobot.com
QR code
Delivery to
Please add the address first.
Specifications
Code
：
HC118
Brand
：
DAGU
Detail

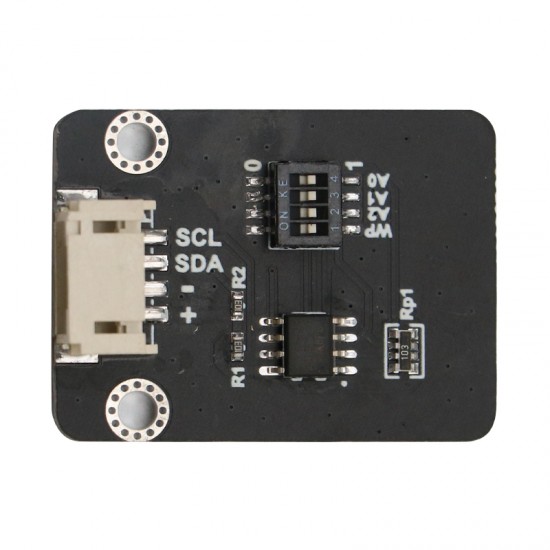

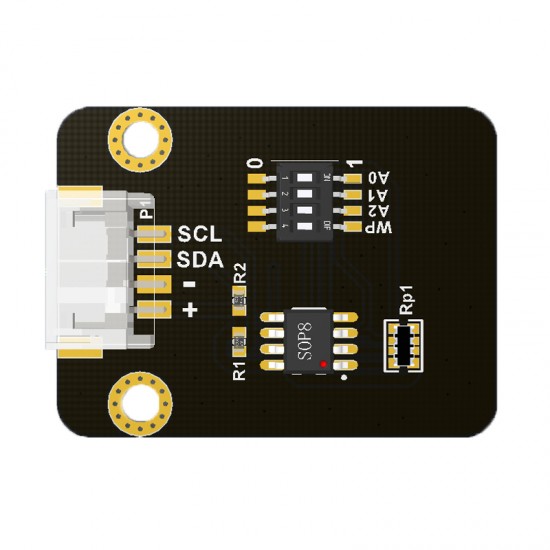

Arduino EEPRROMModule for steam education
Productdescription:
EPPRROM is a kind of electrically erasable programmable read-only memory, whichis a kind of memory chip without data loss after power failure. AT24C02, a 2Kbit COMS EEPROM, has 256 8-bit bytes and a special write protection function.
Working voltage: 3.3V to 5V
Type: IIC protocol
IIC address: 3 hardware address pins can have 8 addressing, WP is writeprotection function
Interface mode: ph2.0-4p
Module size: 34 x 25mm
Module weight: 38g

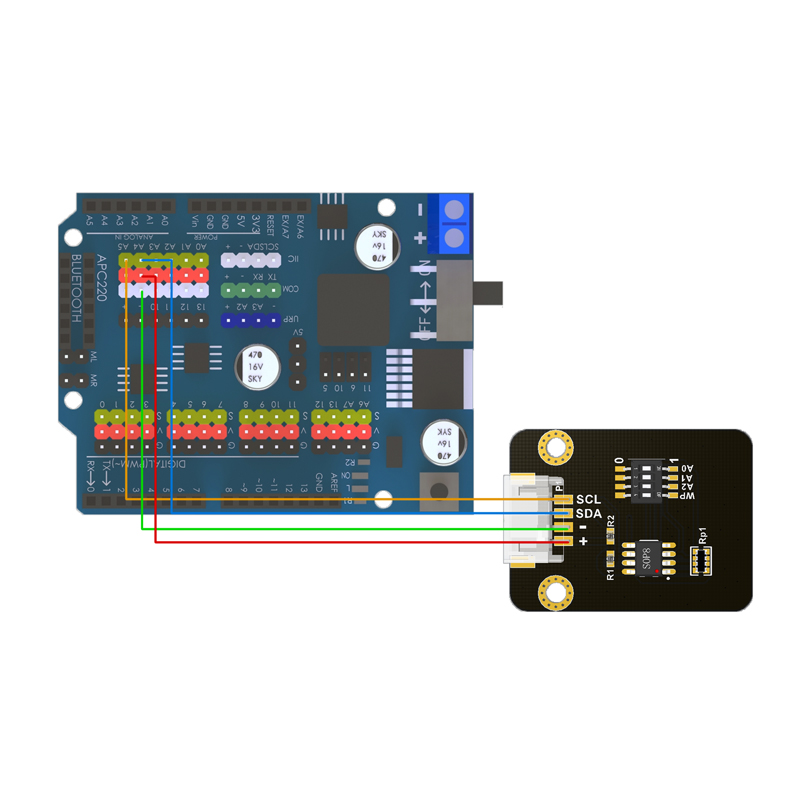

PIN definition:
SCL | Clock line |
SDA | Two way data line |
+ | VCC |
- | GND |
