Explore the Micro:bit Expansion board Magician:bit offered by dagurobot.This high - quality expansion board enhances the capabilities of your Micro:bit, enabling youto create amazing projects with ease.
$14.50
Quantity
1 items selected,Total $14.50
Add to Cart
BUY
sales@dagurobot.com
QR code
Delivery to
Please add the address first.
Easy access to support
Prev: Speed Mesure Photoelectric Sensor Module
Next: Explore the Micro:bit Expansion board Magician:bit offered by dagurobot.This high - quality expansion board enhances the capabilities of your Micro:bit, enabling youto create amazing projects with ease.
Specifications
Code
：
HC008
Brand
：
DAGU
Detail

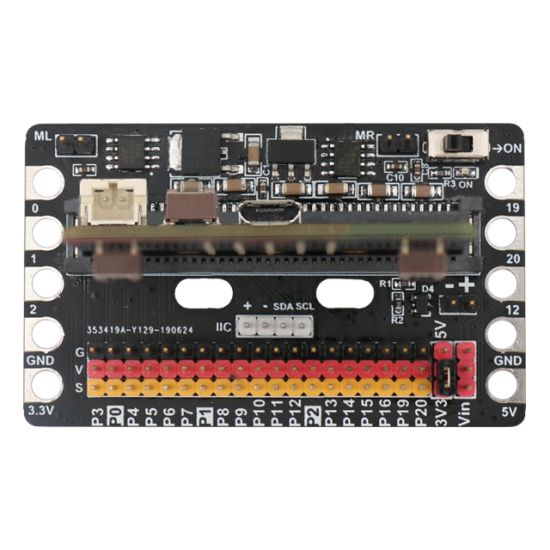

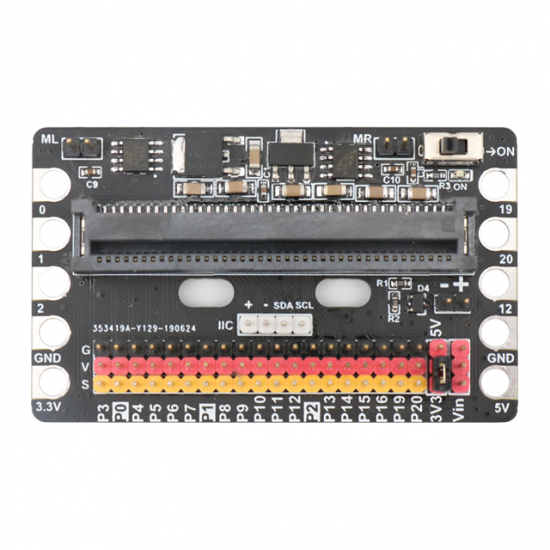

MAGICIAN:BIT

MICRO:BIT EXPANSION BOARD

1 :LEFT MOTOR DRIVE INTERFACE, MOTOR DRIVE MAXIMUM SUPPORT 3A

2 :RIGHT MOTOR DRIVE INTERFACE, MOTOR DRIVE MAXIMUM SUPPORT 3A

3: POWER SWITCH AND INDICATOR LIGHT, TURN ON BRIGHT RED

4: POWER INPUT INTERFACE, MINIMUM 6.4V, MAXIMUM 8.4V, WITHANTI-BACKCONNECTION PROTECTION

5: CROCODILE CLAMP INTERFACE

6: BATTERY VOLTAGE INTERFACE

7: SELECTION OF POWER SUPPLY, JUMPER CAP, UPPER 5V AND LOWER 3.3V

8:I2C INTERFACE

9:GND

10: WHEN 7 CHOOSES HOW MUCH V, THE OUTPUT VOLTAGE IS THE SELECTEDVOLTAGE.

11: IO INTERFACE

12: FIXED HOLE
