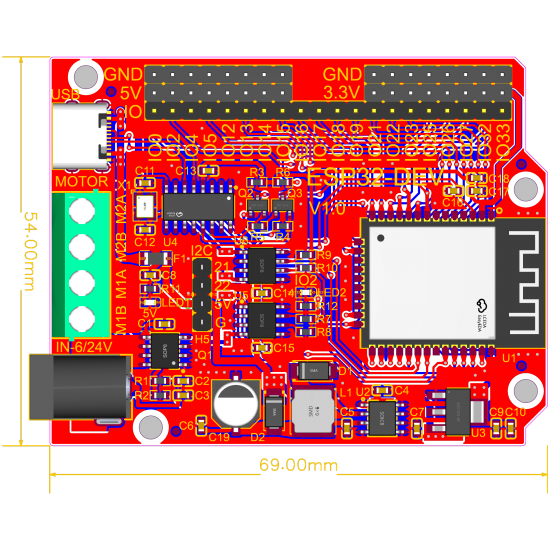

ESP32 DEV IOT development board compatible with arduino

The development board modulemodel ESP-WROOM-32 is a universal Wi Fi+BT+BLE MCU module with powerfulfunctions and wide applications, which can be used for low-power sensornetworks and extremely demanding tasks such as voice encoding, audio streaming,and MP3 decoding.

ESP-WROOM-32 integratestraditional Bluetooth, low-power Bluetooth, and Wi Fi, and has a wide range ofapplications: Wi Fi supports a wide range of communication connections and alsosupports direct connection to the Internet through routers; Bluetooth allowsusers to connect to their phones or broadcast BLE Beacon for signal detection.The sleep current of the ESP32 chip is less than 5 µ A, making it suitable forbattery powered wearable electronic devices. The ESP-WROOM-32 supports a datatransmission rate of up to 150 Mbps, and after passing through a power amplifierand antenna, the output power can reach 20.5 dBm, achieving the maximum rangeof wireless communication. Therefore, this chip has industry-leading technicalspecifications and performs best in high integration, wireless transmissiondistance, power consumption, and network connectivity.

The ESP32 DEV development boardhas the following features:

Wi Fi RF certification:FCC/CE/IC/TELEC/KCC/SRRC/NCC

Wi Fi protocol: 802.11b/g/n/e/i (802.11n, speed up to 150 Mbps)

Wi Fi frequency range: 2.4GHz~2.5 GHz

Bluetooth protocol complieswith v4.2 BR/EDR and BLE standards

Bluetooth RF: NZIF receiverwith -97 dBm sensitivity

Bluetooth audio: CVSD and SBCaudio

On board clock: 40 MHz crystaloscillator

Main board working voltage:6V~24V

Power supply current: minimum500 Ma

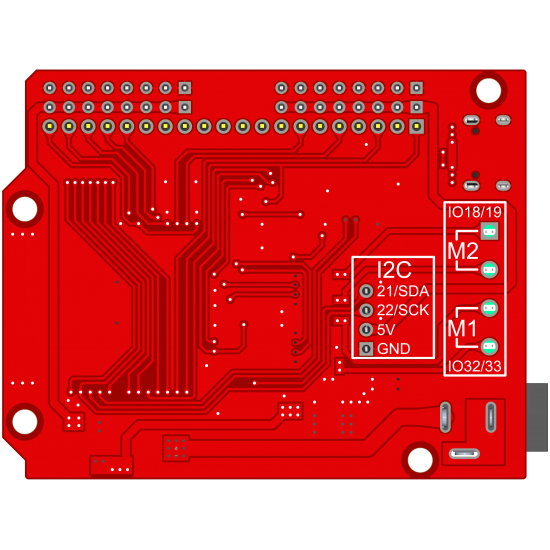

Two motor control outputs: 5V400mA Programming pins M1A (GPIO33) M1B (GPIO32), M2A (GPIO19) M2B (GPIO18)

LED output: programming pinGPIO2

Working temperature range: -40° C~+85 ° C

Hardware module interfaces: SDcard, UART, SPI, SDIO, I2C, LED PWM, motor PWM, I2S, IR

GPIO, capacitive touch sensor,ADC, DAC, LNA preamplifier

Software development: Supportcloud server development/SDK for user firmware development

Wi Fi mode:Station/SoftAP/SoftAP+Station/P2P

Wi Fi security mechanism: WPA/WPA2/WPA2Enterprise/WPS

Encryption type:AES/RSA/ECC/SHA

Firmware upgrade: UARTdownload/OTA (downloading and writing firmware through the network or host)

Network protocols: IPv4, IPv6,SSL, TCP/UDP/HTTP/FTP/MQTT

User configuration:AT+instruction set, cloud server, Android/iOS app
