Square Cube Universal Robot Chassis
Explore the Square Cube Universal Robot Chassis from Dagurobot. It offershigh quality design and versatility, perfect for various robot building projects.
$3000.00
Quantity
1 items selected,Total $3000.00
sales@dagurobot.com
QR code
Delivery to
Please add the address first.
Specifications
Code
：
DGCH600
Brand
：
DAGU
Detail

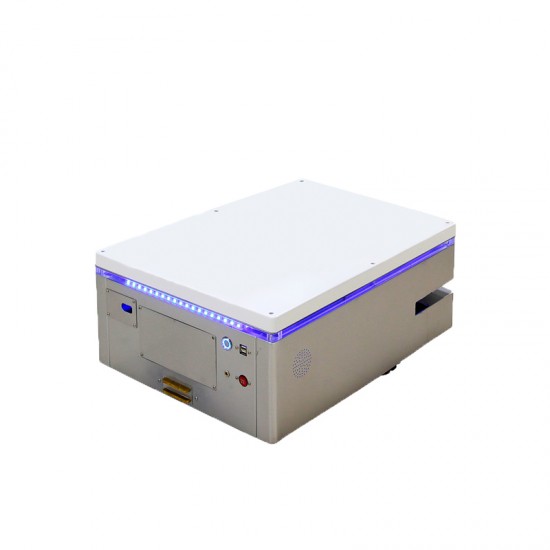

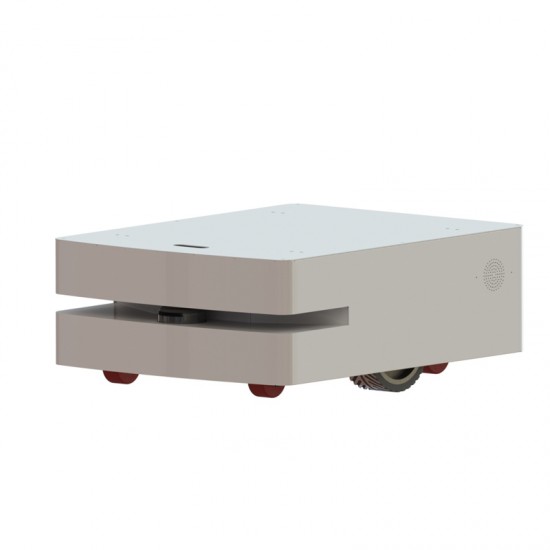

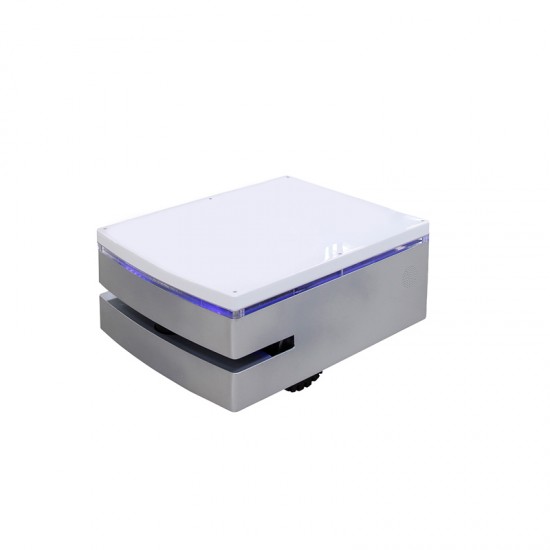

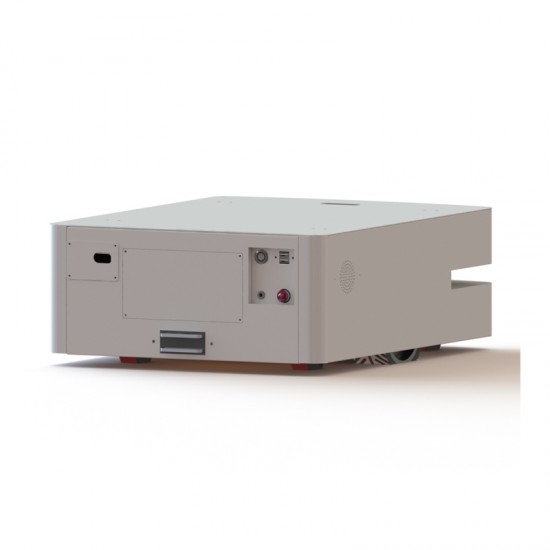

DGCH600 UNIVERSAL ROBOT CHASSISWITH SQUARE CUBE SHOCK ABSORPTION
Productparameters:
1. Size: 460*630*232mm
2. Ground clearance: 37mm
3. Drive wheel diameter: 150mm
4. Shock absorption mode: two-wheel independent suspension
5. Total power: 90W*2
6. Motor type: DC brushless motor
7. Drive mode: two-wheel independent drive
8. Speed: 0~0.6m/s (can be adjustable)
9. Load: 100kg
10. The maximum climb capability: 12 degree (full power)
11. The maximum height of obstacle crossing: 10mm
12. Battery: 24V 20AH lithium battery pack, lasting about 5 hours, standbyabout 12 hours
13. Sensor: Lidar
14. Charging pile: Input voltage: 100~240V AC 50~60H
Current: 5A
