DAGU Offset Gear Motor Accessories (1 pair, 2 pieces) are high-performance micro gear motors with 1:48 gear ratio, 9mm long output axis and ROHS certification, featuring a compact offset design, stable torque (≥800 gf·cm), easy component connection, and suitability for DIY robotics, educational models and light-load equipment, ideal for hobbyists and professional makers.
$7.99
Quantity
Add to Cart
BUY
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Prev: DAGU Off set gear motor acessorios 1:48 (1 pair) ROHS
Next: DAGU Off set gear motor acessorios 1:48 (1 pair)single METAL shaft ROHS
Specifications
Code
：
DG02S-L
Brand
：
DAGU
Detail

DAGU Offset Gear Motor Accessories (1:48,

1 Pair, 9MM Long Output Axis, ROHS)

The DAGU Offset Gear Motor Accessories are a high-performance, reliable pair of gear motors specifically designed to cater to the diverse demands of DIY projects, robotic systems, and small-scale mechanical equipment. Developed by DAGU, a well-known brand in micro-motor manufacturing, this product integrates precise gear reduction technology, a compact offset structure, and strict environmental compliance, guaranteeing consistent and stable performance in all application scenarios.

Product Overview

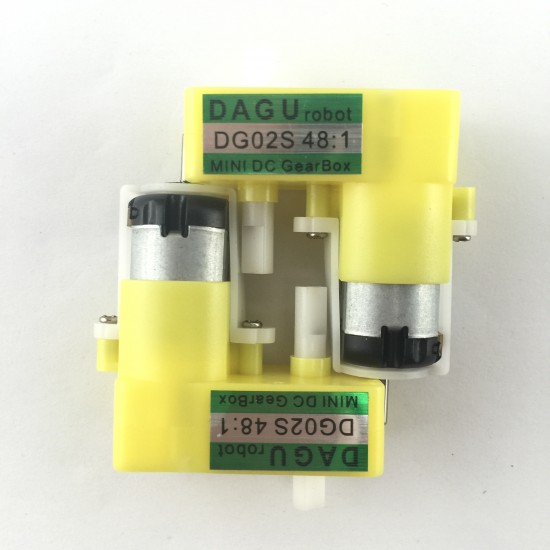

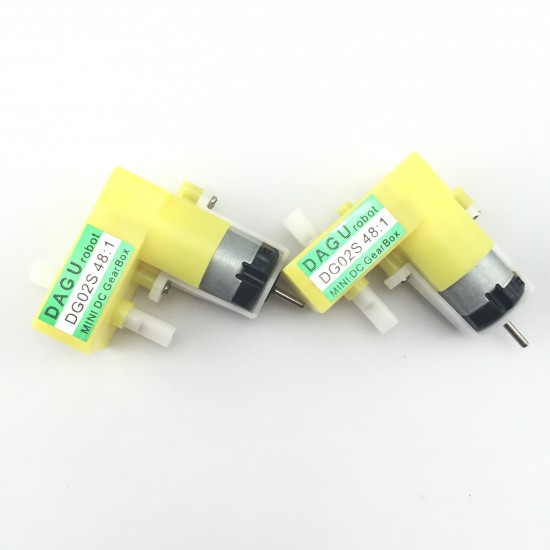

Each package includes 1 pair (2 pieces) of offset gear motors, featuring a 1:48 gear ratio, a 9mm long output axis, and full compliance with the EU ROHS directive. The unique offset design allows for flexible installation in space-constrained environments, while the optimized gear configuration perfectly balances speed reduction and torque amplification—making it an ideal choice for projects that require low speed, high torque, and reliable power transmission.

Key Specifications

  • Brand: DAGU

  • Type: Offset Gear Motor (1 Pair, 2 pieces total)

  • Gear Ratio: 1:48 – Effectively reduces output speed while significantly enhancing torque, providing robust driving force for light to medium heavy-load operations.

  • Output Axis: 9MM Long – The extended output shaft enables easy connection with wheels, gears, pulleys, or other mechanical components, ensuring stable and efficient power transfer without slippage.

  • Compliance: ROHS Certified – Fully adheres to the EU ROHS directive (2002/95/EC), which prohibits the use of six hazardous substances (lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers), making it environmentally friendly and safe for global application.

  • Suggested Operating Voltage: 4.5V DC – Ensures stable operation with low power consumption, with a no-load current of 190mA (maximum 250mA) for energy-efficient performance.

  • No-Load Speed: 140 RPM ±10% – Delivers steady, controllable speed for precise operation, adaptable to various project requirements with consistent performance.

  • Torque: Minimum 800 gf·cm – Provides sufficient driving torque to power small robotic platforms, DIY toys, precision instruments, and light mechanical devices.

  • Dimensions: 20×20×64mm – Compact and lightweight (approximately 0.10kg per pair), designed for easy integration into tight installation spaces without compromising performance.

Core Advantages

1. High Torque & Stable Transmission

The 1:48 gear ratio is strategically designed to prioritize torque over speed, allowing the motor to drive loads that standard micro-motors cannot handle. The precision-machined gearbox is equipped with high-quality gears, ensuring smooth transmission, low operating noise, and minimal wear—effectively extending the motor’s service life and reducing maintenance requirements.

2. Flexible Offset Design

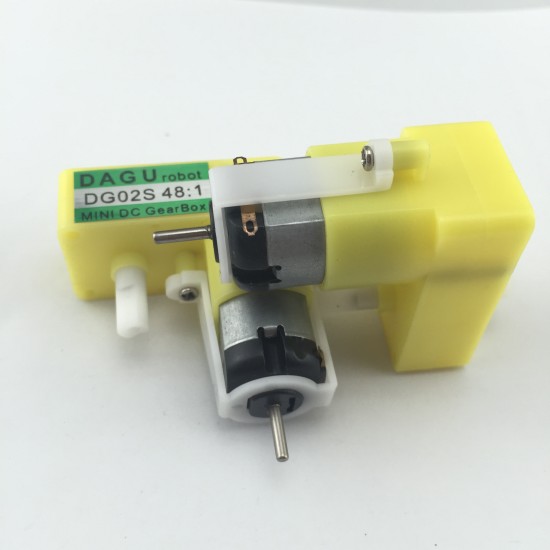

The offset structure positions the output axis at a non-coaxial angle with the motor body, offering exceptional installation flexibility in space-limited projects. It is particularly suitable for robotic cars, small toys, compact DIY devices, and other applications where traditional coaxial motors cannot fit, and pairs seamlessly with 65mm rubber wheels for robotic platforms.

3. ROHS Compliance & Environmental Safety

Fully compliant with ROHS standards, this gear motor is free from harmful substances, making it safe for use in consumer electronics, children’s toys, and projects requiring environmental certification. It meets international safety standards for electrical and electronic equipment, ensuring wide applicability across global markets.

Application Scenarios

This product is ideal for a wide range of applications, including DIY robotic projects (e.g., robotic cars, small robots), educational models, small toys, precision mechanical equipment, and light-load automation devices. Its compact size, high torque, and ROHS compliance make it suitable for both hobbyists and professional makers.

Usage Notes

1. Operate the motor within the suggested 4.5V DC voltage range to avoid damage; overvoltage may cause overheating or permanent motor failure. 2. Ensure the output axis is properly connected to mechanical components to prevent slippage and ensure stable transmission. 3. Keep the motor away from high-temperature, humid, or dusty environments to extend its service life. 4. Do not disassemble the gearbox, as this may damage internal gears and void the product’s performance guarantee.

Suggested Voltage:4.5V DC

No load Speed:140rpm

No Load Current:190mA(max.250mA)

Torque:800gf.cm min

Size:20*20*64

Theregear motors, 130 model, 140 model, 260 model, 280 model and many othermicro-motors, please consult contact!

Use:There are scientific electronic products, electric robot body type, bubble guntoy gun body type, 4WD toy automobiles, airplanes toys, electric shock andother products like toys,you need to make

otherimprovements, please contact!

Description:Designed for Smart cars (parameters are as follows)

Products:

straightaxis gear motor

No-loadspeed No-load current supply voltage

Customproduction according to demand, change the output speed!

CustomOutput speed: a few turns to several hundred rpm
