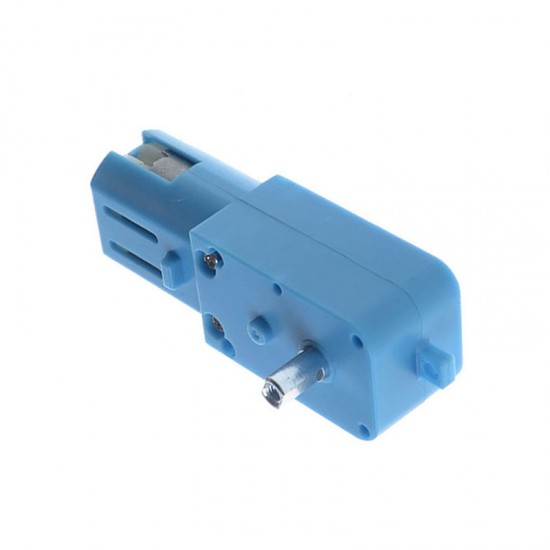

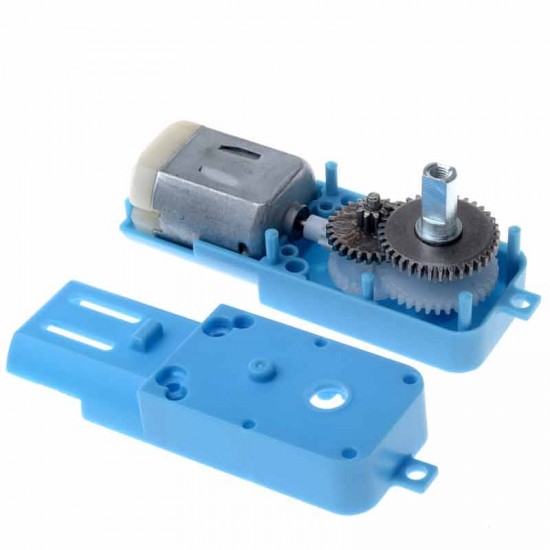

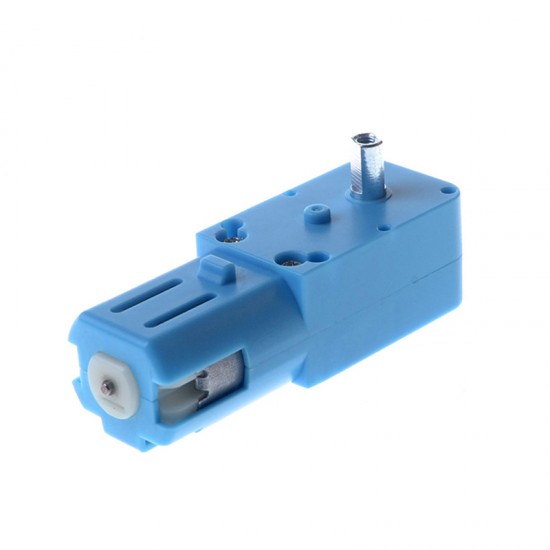

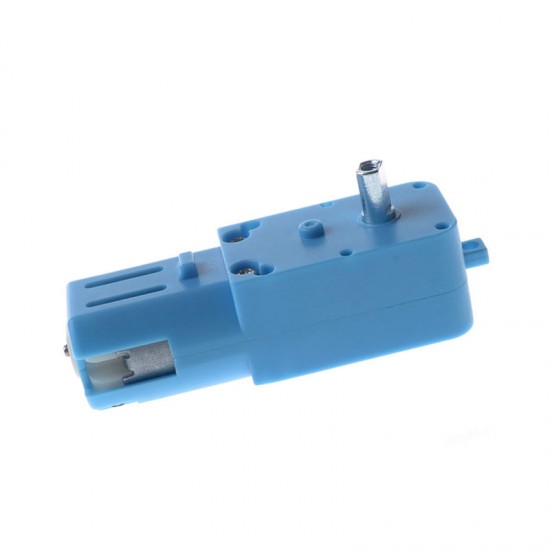

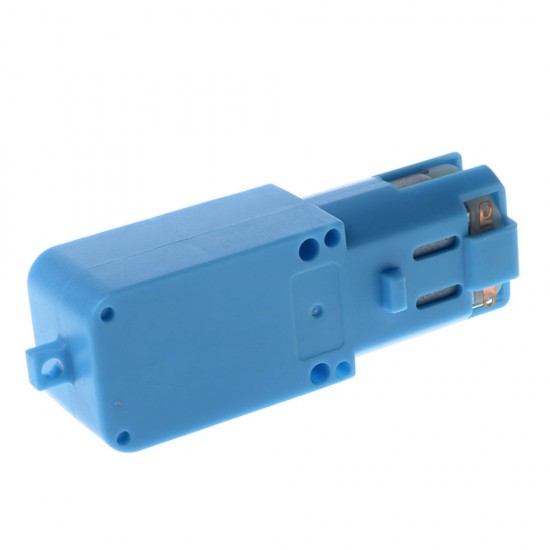

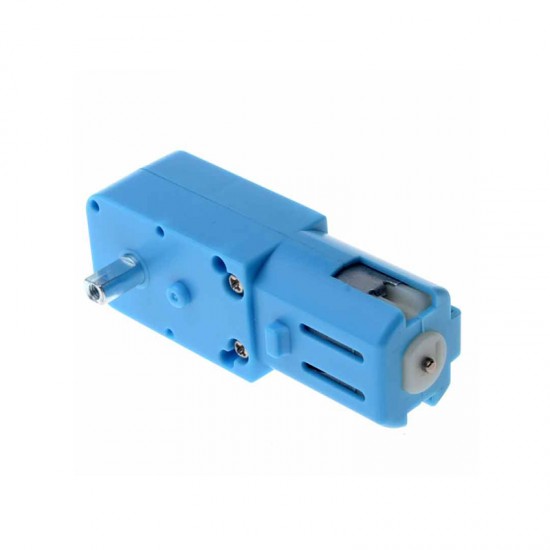

3V-6V 200RPM High torque Semi-metal gear DCgearbox motor 1:90 Single axis gear box

·        Specifications:

·        TT Gearbox motor Smart car motor

·        DC 3V-6V 200±10%RPM

·        Gear type: Semi-metal

·        Reduction ratio: 1:90

·        Single axis

·        Conditions of Standard Operation:

·        Suggested Voltage: 3.0V-6.0V DC Constantbetween motor terminals

·        Direction of rotation: Bi-directions

·        Gear box position: All directions

·        Storage Humidity Range with the exception ofgear box: 30%~70%

·        Operation temperature range with theexception of gearbox: +10℃~+50℃

·        Storage temperature Range with the exceptionof gearbox: -10℃~+40℃

·        Gear box noise: 70dB (Max)

·        Background noise: 35dB (Max)

·        No load Current: 140mA (140mA Max)

·        Current under rated load: 140mA (140mA Max)

·        Current by qualified test: 140mA Max

·        Starting Voltage: 1.2V (1.6V Max)

·        Dimension:
