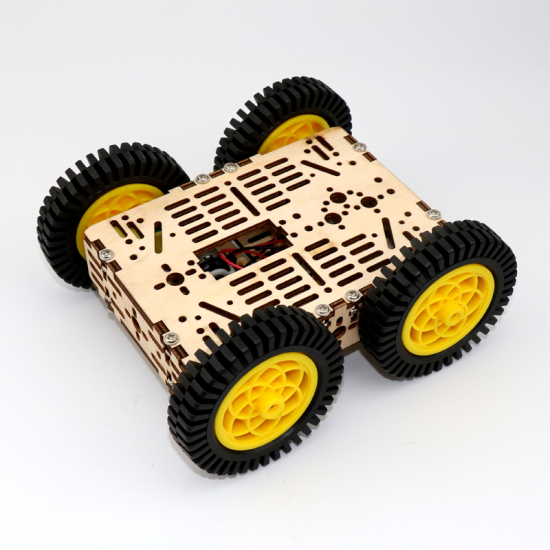

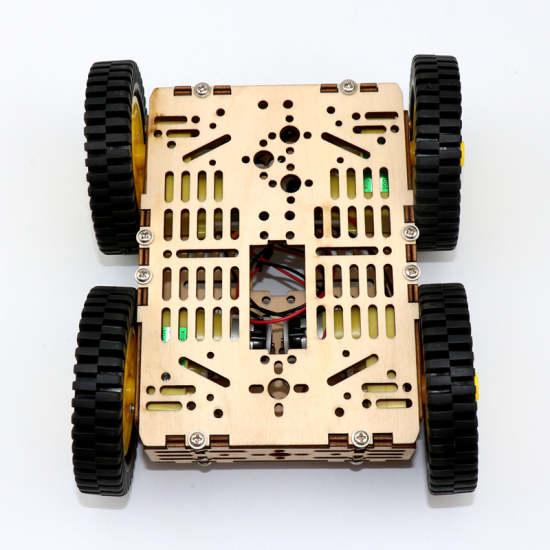

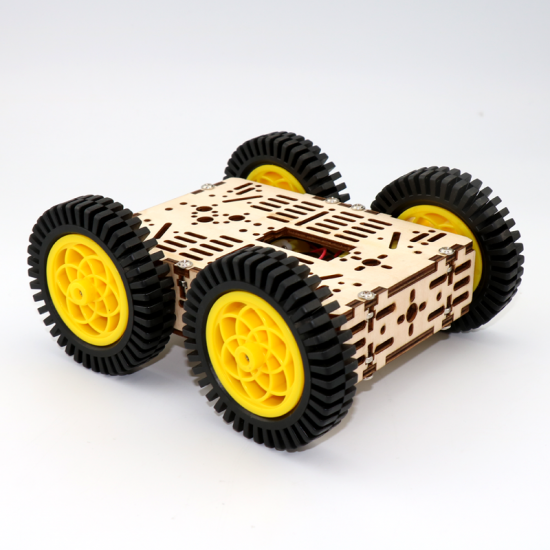

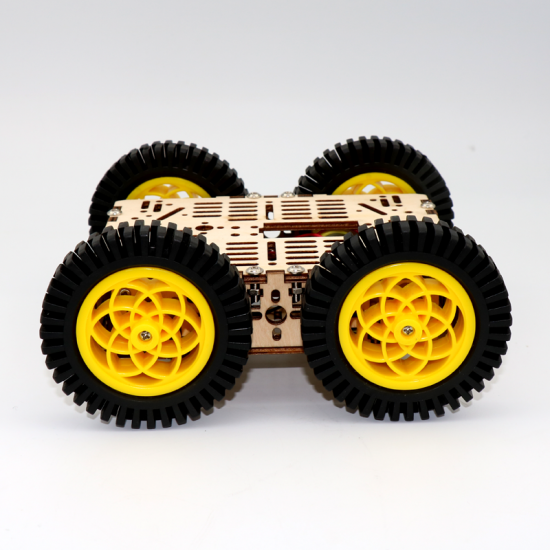

DG012-ATVMulti-Chassis 4WD Kit (ATV Version): a scalable all-terrain mobile robot

Afterassembling your robotics kit, you'll find it very easy to add a variety ofsensors and accessories to the platform for a truly scalable explorationchassis, for example a radio receiver, a camera, environmental sensors or anaudio recodrding system, whatever you wish!

This isbecause your aluminium chassis is equipped with numerous fixation points forattaching controllers, sensors and drivers to imporve the performance andversatility of your robotics creation.

Technical specifications of the DG012-ATV Chassis
The DG012-ATV contains:
   1* Wood Frame
   4* 48:1 DC Gearbox
   4* 78mm Diameter High-Profile Wheel
   4* M3 25mm Standoff
    6* M3 8mm Screw
   4* M2.5 25mm Screw
   4* 2.5 20mm Screw
   8* M3 8mm Screw
   8* M2.5 Nut
   2* M3 Nut
   1 holder for 5 AA batteries
   1 spanner
   1 screwdriver

Paramater:
1.Dimensions of the assembled kit: 178*135*78mm
2. Wheelsize: 78mm Diameter
3. Wheelnumber: 4 piece (Rubber surface)
4.Supply: 6~9V DC (7.2V DC recommended)
5.Working load: 2kg max.
6.No-load speed: 320rpm @7.2V DC
7.No-load consumption: 140mA
8. Motor:4 piece Dagu 48:1 DC gearboxes (6~9V, drive current: 850mA, stall current: 2A)
9. Torqueper motor: 0.8kg.cm
