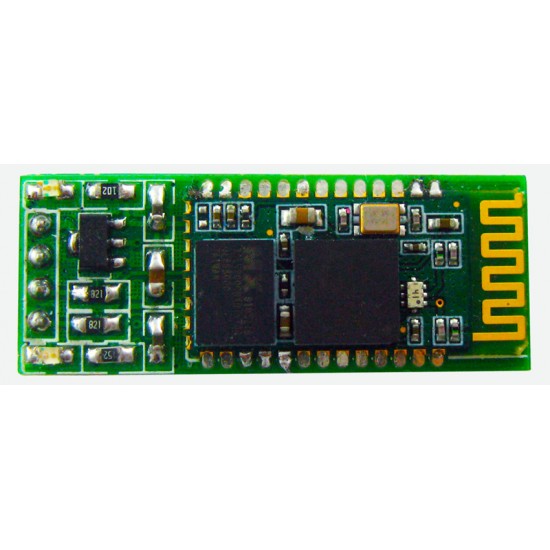

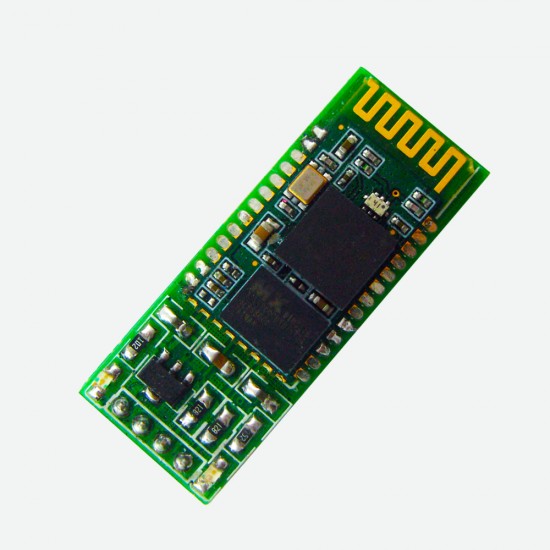

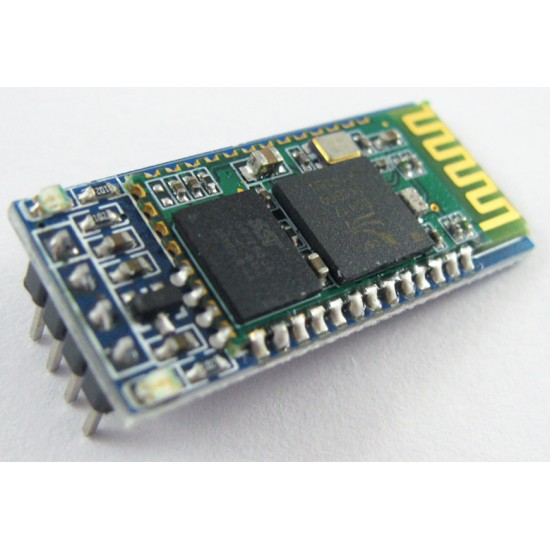

The DAGU Bluetooth Module 2.0 Controller Board (Model: DG010) is a high-performance, ROHS-compliant wireless communication module developed by DAGU, designed specifically for robot and embedded projects. It integrates TTL serial-to-Bluetooth 2.0 conversion, enabling convenient wireless communication and control for microcontroller-based projects. Its key functions include adding wireless serial communication capabilities, supporting wireless control via smartphone apps and AT command configuration, with a compact design that suits a variety of scenarios such as small robots, smart home devices and educational robotics. This module boasts advantages of ROHS compliance, ease of use, stable performance and wide compatibility with mainstream controllers and microboards.
$16.88
Quantity
Add to Cart
BUY
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Prev: RPi Camera, 160 degree, Fisheye Lens
Next: DAGU educational robot 6WD wild thumper chassis (Black body with 34:1 gearbox) for Robotcup CE certificate ROHS
Specifications
Code
：
DG010
Brand
：
DAGU
Detail

DAGU Bluetooth Module 2.0 Controller Board (ROHS Compliant)

The DAGU Bluetooth Module 2.0 Controller Board (Model: DG010) is a high-performance, ROHS-compliant wireless communication module designed specifically for robot and embedded projects. Developed by DAGU, this module integrates TTL serial-to-Bluetooth 2.0 conversion, enabling convenient wireless data transmission between microcontrollers and external devices such as smartphones or computers.

Core Specifications & Features

  • Bluetooth Standard: Bluetooth 2.0 (Class 2), operating in the 2.4GHz frequency band

  • Communication Interface: TTL UART serial interface, easy to connect with microcontrollers

  • Default Baud Rate: 9600 bps (8N1), configurable via AT commands

  • Default Pairing Code: 1234 or 0000, simple and easy to complete pairing

  • Operating Voltage: 3.3V ~ 6V DC, with a built-in 3.3V voltage regulator for stable operation

  • Antenna: On-board 2.4GHz PCB antenna, ensuring reliable wireless communication within effective range

  • Dimensions: 35 × 16 × 12 mm, compact size for easy integration into small projects

  • Operating Temperature: -20°C ~ +75°C, adaptable to various working environments

  • Environmental Certification: Fully ROHS compliant, meeting international environmental protection standards

  • Compatibility: Specifically designed for Dagu Mini Driver (DG009) and Micro Magician V2 controllers, also compatible with Arduino boards and other mainstream microcontrollers[2][4]

Key Functions

  • Add wireless serial communication capability to Arduino and microcontroller-based projects, replacing traditional wired connections for more flexible project design

  • Enable wireless control of robots and embedded devices via smartphone apps, supporting real-time data transmission and command sending

  • Support AT command configuration, allowing users to adjust baud rate, pairing code, device name and other parameters according to project needs

  • Built-in voltage regulator ensures stable operation even when the input voltage fluctuates slightly, improving project reliability

  • Compact and lightweight design, suitable for a variety of scenarios such as small robots, smart home devices, and industrial control equipment

Application Scenarios

Ideal for a wide range of embedded and robot projects, including Arduino-based robots, smart control systems, wireless data acquisition devices, educational robotics, and small household smart gadgets. It is particularly suitable for projects that require wireless control or data transmission without cumbersome wired connections, such as Dagu Adventure Bot and Doodle Bot.

Product Advantages

  • ROHS Compliance: Meets international environmental protection requirements, suitable for global markets

  • Easy to Use: Simple wiring, plug-and-play design, no complex configuration required for basic use

  • Stable Performance: High-quality electronic components and circuit design ensure stable data transmission and long service life

  • Wide Compatibility: Works seamlessly with Dagu controllers and Arduino boards, adapting to most mainstream microcontroller projects

  • Compact Size: Small and lightweight, saving space and facilitating integration into miniaturized projects
