arduino magician chassis with PS2 remote ROHS
The Arduino Magician Chassis with a PS2 2.4G wireless remote is a RoHS-compliant mobile robot platform ideal for STEM education, maker projects and hobbyist robotics. This all-in-one kit features a sturdy, easy-to-assemble double-layer chassis with two 6V DC gear motors, 65mm rubber wheels, a front ball caster, and a 4×AA battery holder. The PS2 remote provides stable 10-meter wireless control for precise movement, supporting plug-and-play with Arduino controllers and motor drivers via simple programming. Made of non-toxic, RoHS-compliant materials, it is safe for students and suitable for labs, maker spaces and home use, serving as a perfect entry-level kit for exploring robotics and programming.
$42.00
Quantity
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Specifications
Code
：
DG007-S4A
Brand
：
DAGU
Detail
Arduino Magician Chassis with PS2 Remote
(RoHS Compliant) Product Introduction

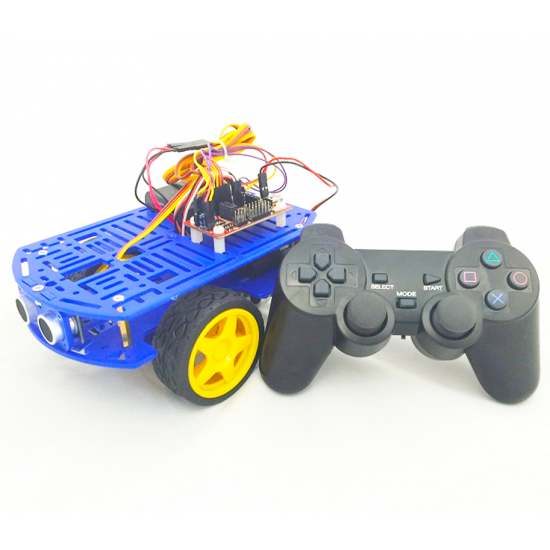

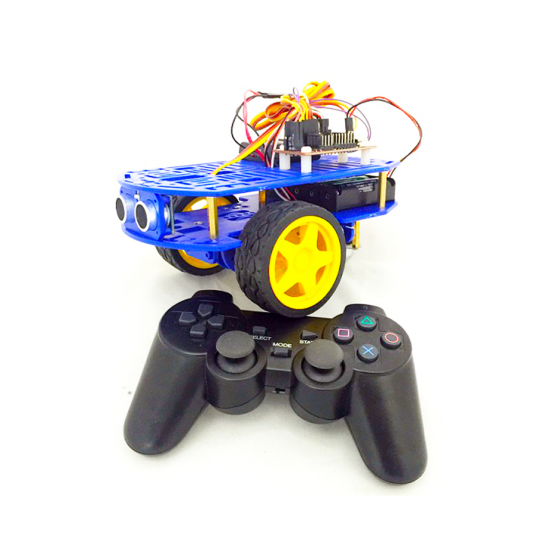

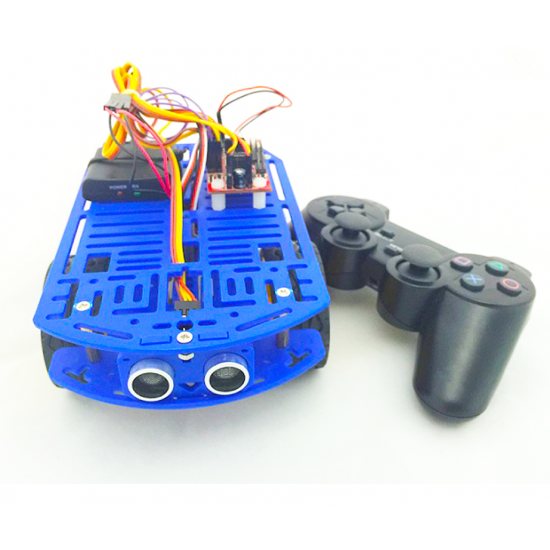

The Arduino Magician Chassis paired with a PS2 2.4G wireless remote is a high-performance, RoHS-compliant mobile robot platform, specifically designed for STEM education, maker projects, and hobbyist robotics. This all-in-one kit combines a sturdy, easy-to-assemble chassis with reliable wireless control, making it an ideal choice for beginners and experienced makers alike to build and customize their own mobile robots.
Core Product Features
1. Magician Chassis: Stable & Versatile Structure

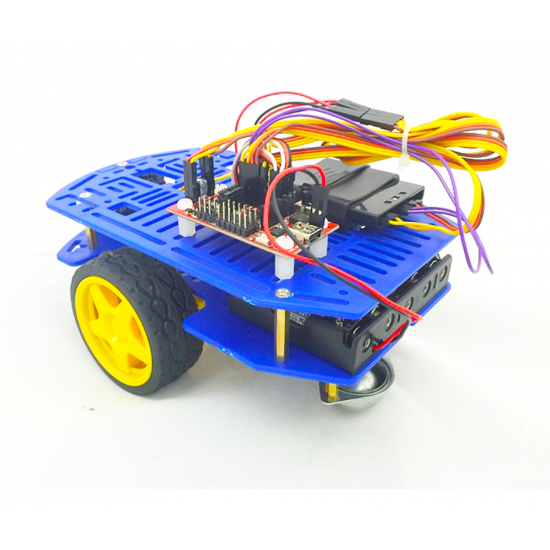

The Magician chassis adopts a double-layer design (110×174mm plastic/acrylic mounting plate), featuring two DC gear motors, 65mm solid rubber wheels, and a front ball caster. This structure ensures smooth movement, strong load-bearing capacity, and excellent stability on various surfaces (such as desks, floors, and experimental platforms). The chassis is pre-drilled with multiple mounting holes, allowing easy installation of Arduino controllers, sensors (e.g., ultrasonic, infrared), batteries, and other expansion modules, supporting diverse customization needs.
Motor Specifications: Rated voltage 6V DC, no-load speed 90±10 rpm, torque 800 gf·cm, stall current about 1A. Equipped with a 4×AA battery holder and a full set of screws for quick assembly without additional tools.
2. PS2 2.4G Wireless Remote Control: Reliable & Responsive
The matching PS2 2.4G wireless remote control provides stable signal transmission with a control distance of up to 10 meters, avoiding signal interference from other devices. The remote features intuitive buttons and joysticks, enabling precise control of the chassis’s forward, backward, left turn, right turn, and stop functions. It supports plug-and-play connection with the Arduino controller, requiring simple programming to realize full remote control of the robot.
3. RoHS Compliance: Environmentally Friendly & Safe
This product fully complies with the RoHS (Restriction of Hazardous Substances) directive, strictly restricting the use of hazardous substances such as lead, cadmium, mercury, and hexavalent chromium in materials and components. The chassis shell, motor, remote control casing, and electronic components are all made of environmentally friendly, non-toxic materials, ensuring safety for users (especially students) and reducing environmental impact, making it suitable for school laboratories, maker spaces, and home use.
Compatibility & Application
The chassis is perfectly compatible with Arduino controllers (Uno, Nano, Mega, etc.) and common motor driver modules (L298N H-bridge, TB6612FNG, etc.). It is widely used in STEM education courses, robot competitions, hobbyist projects, and intelligent robot prototyping—helping users master robot assembly, programming, and motion control skills in practice.
Package Includes
1× Magician Double-Layer Chassis (RoHS Compliant)
2× DC Gear Motors (RoHS Compliant)
2× 65mm Solid Rubber Wheels
1× Front Ball Caster
1× PS2 2.4G Wireless Remote Control (Transmitter + Receiver)
1× 4×AA Battery Holder
1× Set of Mounting Screws
1× Simple Assembly & Connection Guide
With its stable performance, easy assembly, RoHS compliance, and flexible customization, this Arduino Magician Chassis with PS2 Remote kit is the perfect starting point for anyone looking to explore the world of robotics and programming.
