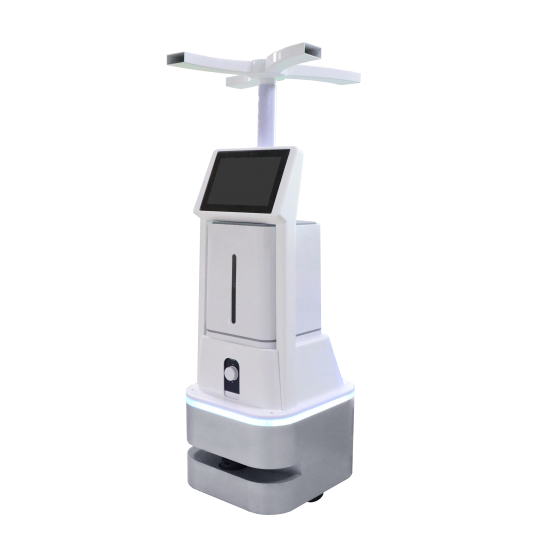

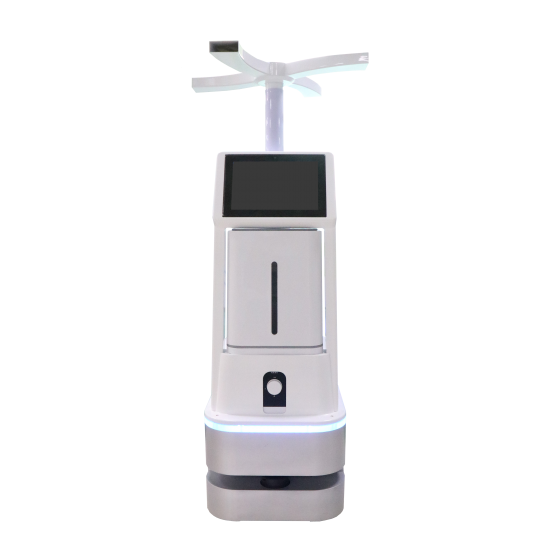

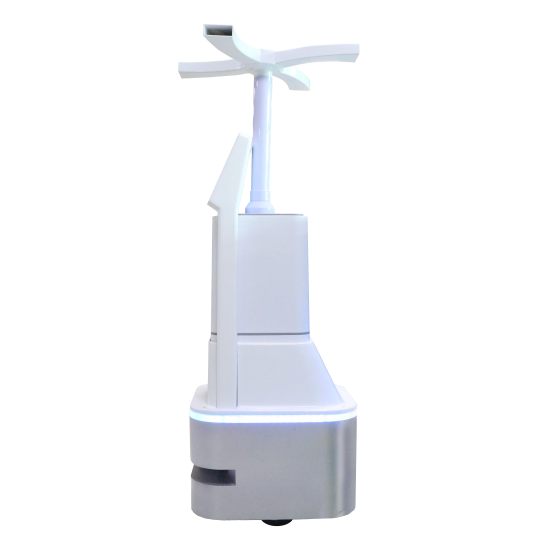

BJDG-XD106 Disinfection Robot
The BJDG-XD106 is a professional intelligent disinfection robot designed to replace manual disinfection, featuring high-performance UV-C quartz lamps (254nm wavelength, 410W total power, 8,000-hour service life) for 360° dead-angle-free disinfection with a 99.99% sterilization rate; it adopts SLAM autonomous navigation and 10m-range laser radar for automatic mapping and rapid obstacle avoidance, supports 24-hour unattended operation, is equipped with multi-level safety protection (thermal infrared sensors, emergency stop button) and compliant with multiple certifications, applicable to various indoor scenarios, with key parameters including 6-hour battery life, 2-hour full charge, 0.2-0.5m/s adjustable speed, and APP/cloud remote control.
$6000.00
Quantity
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Specifications
Code
：
BJDG-XD106
Brand
：
DAGU
Detail
BJDG-
XD106 Disinfection Robot Product Introduc
tion
The BJDG-XD106 Disinfection Robot is a high-end professional intelligent disinfection device meticulously developed to address the growing demand for efficient, thorough, and safe sterilization in various indoor environments. Designed with a focus on practicality and intelligence, this robot is engineered to provide comprehensive disinfection solutions that cover every corner of the target space, effectively replacing labor-intensive manual disinfection. By integrating advanced core technologies and humanized design concepts, it not only significantly improves disinfection efficiency—reducing the time required for disinfection by 60% compared to manual operations—but also minimizes the risk of cross-infection caused by human contact with contaminated surfaces. This makes it an indispensable and ideal choice for modern public health protection in both medical and non-medical scenarios.
At the core of the BJDG-XD106’s disinfection capability are its high-performance UV-C quartz lamps, which are specially selected for their strong sterilization effect and long service life (up to 8,000 hours of continuous use). These lamps are strategically arranged around the robot’s body to achieve 360° all-round, dead-angle-free disinfection, ensuring that no area—whether corners, gaps, or hard-to-reach surfaces—is left unsterilized. The UV-C light emitted by these lamps operates at a wavelength of 254nm, which is proven to quickly destroy the DNA or RNA molecular structure of various pathogenic microorganisms, including common bacteria (such as Escherichia coli, Staphylococcus aureus), fungi (such as Candida albicans), and viruses (such as influenza virus, coronavirus), with a sterilization rate of up to 99.99%. With a total ultraviolet irradiation intensity of 1500μW/cm² and a total lamp power of 410W, the robot delivers fast and efficient disinfection: it can disinfect a 50㎡ room in just 15 minutes. Additionally, its high-capacity battery allows the robot to complete the sterilization of 8-10 standard rooms (each 40-50㎡) with a single full charge, significantly saving time, labor costs, and reducing the workload of cleaning staff compared with traditional manual disinfection methods that rely on disinfectant sprays or wipes.
To achieve intelligent and efficient operation, the BJDG-XD106 adopts advanced SLAM (Simultaneous Localization and Mapping) autonomous navigation technology, combined with a high-precision laser radar sensing system with a detection range of up to 10 meters. This powerful navigation system enables the robot to automatically scan and map the indoor environment within 5 minutes of starting up, accurately identifying walls, furniture, equipment, and other obstacles. Based on the generated map, the robot intelligently plans the optimal disinfection path—adopting a "Z-shaped" or "spiral" path to ensure full coverage without repetition or omission. It also features intelligent obstacle avoidance with a response time of less than 0.3 seconds: when encountering moving objects (such as people, trolleys) or static obstacles, the robot will automatically detour and adjust its path, ensuring safe operation. The robot supports 24-hour unattended operation, with a range of practical functions including automatic return to charge when the power is lower than 20%, scheduled disinfection (which can be set via the control panel or APP for specific times and durations), and customized disinfection tasks (allowing users to select specific areas or rooms for targeted disinfection). These functions can be flexibly adjusted according to the actual needs of different scenarios, realizing one-stop intelligent disinfection management that requires no manual supervision.
Safety is the core design concept of the BJDG-XD106, and it is equipped with a multi-level safety protection system to ensure the safety of personnel and the environment during operation. First, it is installed with high-sensitivity thermal infrared human body sensors (with a detection angle of 120° and a detection distance of 3 meters), which can quickly detect the presence of human bodies in the disinfection area. Once a person enters, the UV lamps will automatically turn off within 0.5 seconds to avoid UV radiation damage to the skin and eyes, and will resume disinfection operation automatically 30 seconds after the person leaves the area. Second, the robot is equipped with an emergency stop button on the top, which can be pressed manually to stop all operations immediately in case of an emergency. In addition, the quartz UV lamps adopted by the robot are non-toxic, odorless, and free of secondary pollution—unlike chemical disinfectants that may leave residues or irritate the respiratory tract. The product fully complies with the national medical disinfection technical standards (GB 2894-2008) and has passed EU CE, national CMA, and FDA testing and certification, ensuring safe and reliable use in even the most demanding environments such as hospitals and kindergartens.
With strong environmental adaptability, the BJDG-XD106 is widely applicable to a variety of indoor scenarios, covering both medical and public places. In hospitals, it is particularly suitable for operating rooms (where sterile environments are critical), ICUs (to protect critically ill patients from infection), general wards, inspection rooms, and medical laboratories. In non-medical scenarios, it can be used in factories (especially food processing workshops, electronic component factories that require clean environments), office buildings, kindergartens (to protect children’s health), nursing homes (to prevent cross-infection among the elderly), hotels (guest rooms, lobbies, catering areas), shopping malls (public restrooms, elevators), banks, government service halls, and other high-traffic public areas. The robot can adapt to different floor types (including tile, wood, carpet, and concrete) and can operate normally in environments with a temperature range of 0-40℃ and a humidity range of 20%-80%, effectively meeting the disinfection needs of different spaces and helping to build a safe, healthy, and hygienic environment for people.
In terms of performance parameters, the BJDG-XD106 features a compact and stable structure that is designed to fit into various indoor spaces. It has a diameter of 530mm and a height of 1375mm, with a net weight of 55.6kg—light enough to be moved and deployed easily by two people, yet heavy enough to ensure stability during operation. The robot is powered by a 24V high-density lithium-ion battery with a capacity of 100Ah, which provides a battery life of up to 6 hours of continuous disinfection operation. When the battery is low, it can be fully charged in no more than 2 hours using the dedicated charging base, ensuring minimal downtime. With a moving speed of 0.45m/s (adjustable between 0.2-0.5m/s), the robot can efficiently complete the disinfection task of large-area spaces (up to 1000㎡ per hour). In addition, it supports both mobile APP (compatible with iOS and Android systems) and cloud remote control, allowing users to remotely start/stop disinfection tasks, set parameters, monitor real-time disinfection progress, view data statistics (such as disinfection area, duration, and sterilization rate), and check equipment status (such as battery level, lamp life). The robot also automatically generates detailed disinfection logs, which can be exported and printed for record-keeping, realizing refined and traceable management of disinfection work.
The BJDG-XD106 Disinfection Robot perfectly integrates four core advantages: high efficiency, intelligence, safety, and environmental protection. It effectively solves the inherent problems of traditional manual disinfection, such as low efficiency, uneven disinfection (due to human neglect), high labor intensity, and the risk of cross-infection. By leveraging advanced technology, it provides a scientific, reliable, and cost-effective disinfection solution for modern public health prevention and control. Whether in medical institutions that require strict sterile environments or public places that need regular disinfection to protect public health, the BJDG-XD106 serves as a powerful assistant to improve environmental hygiene standards, reduce labor costs, and protect the health of people in all walks of life. It is not just a disinfection device, but a comprehensive intelligent solution for modern environmental health management.
