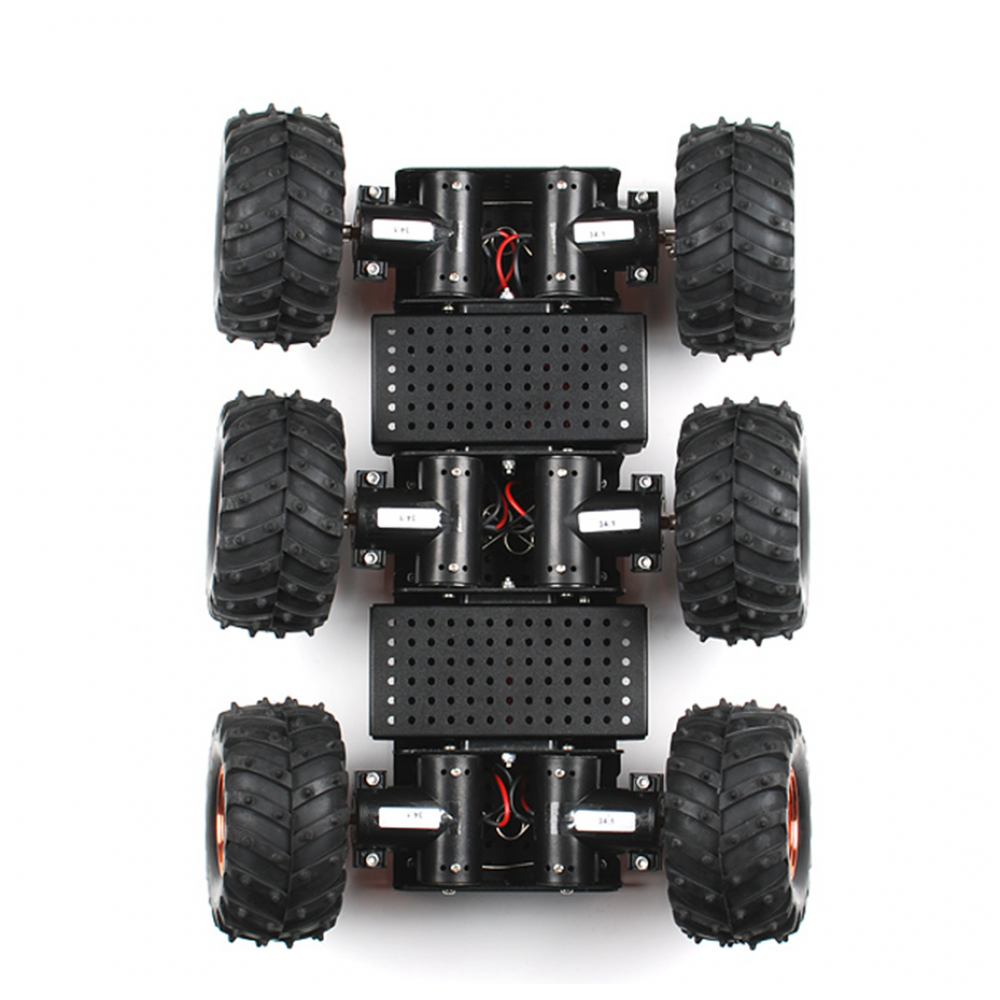

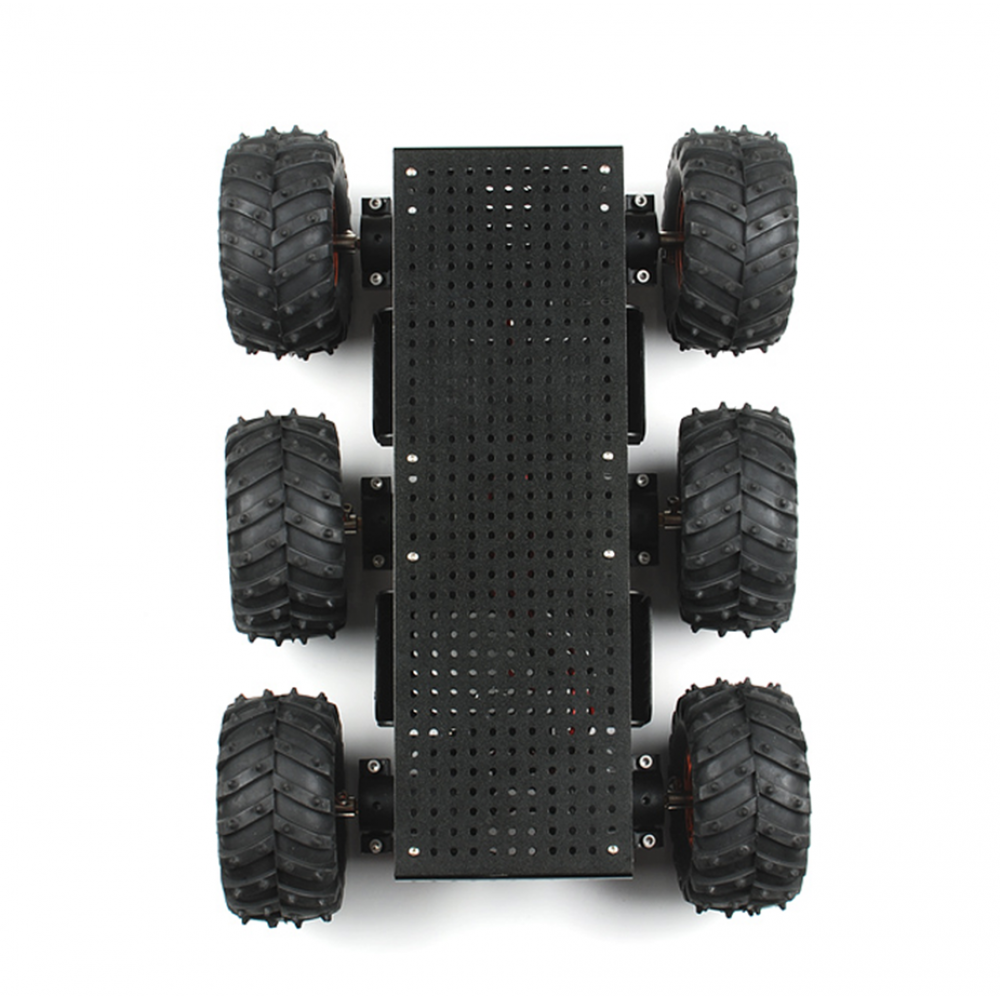

DAGU Educational Robot 6WD Wild Thump

er Chassis for Robotcup (Silver Body with 7

5:1 Gearbox) - CE & ROHS Certified

Core Specifications

• Model: RS003S75

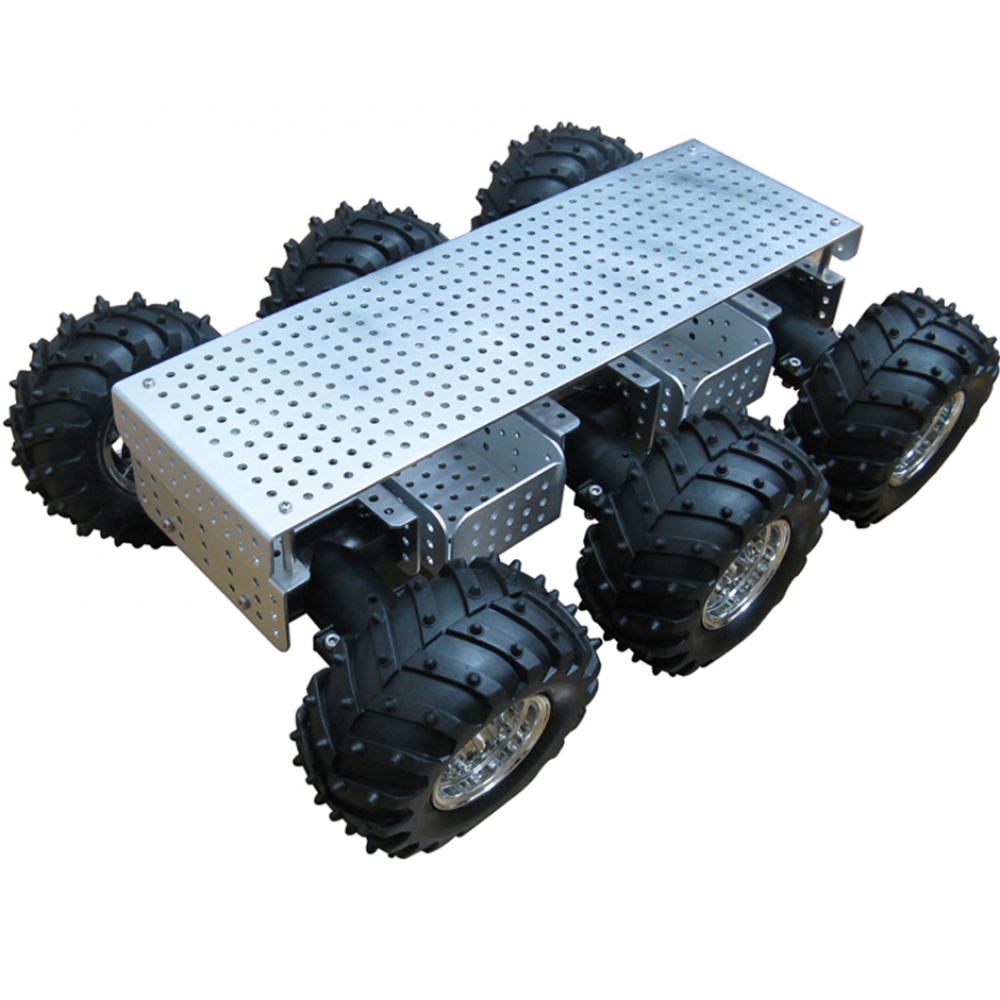

• Body Material: 2mm silver anodized aluminum plate, featuring 4mm mounting holes with 10mm spacing for easy accessory expansion

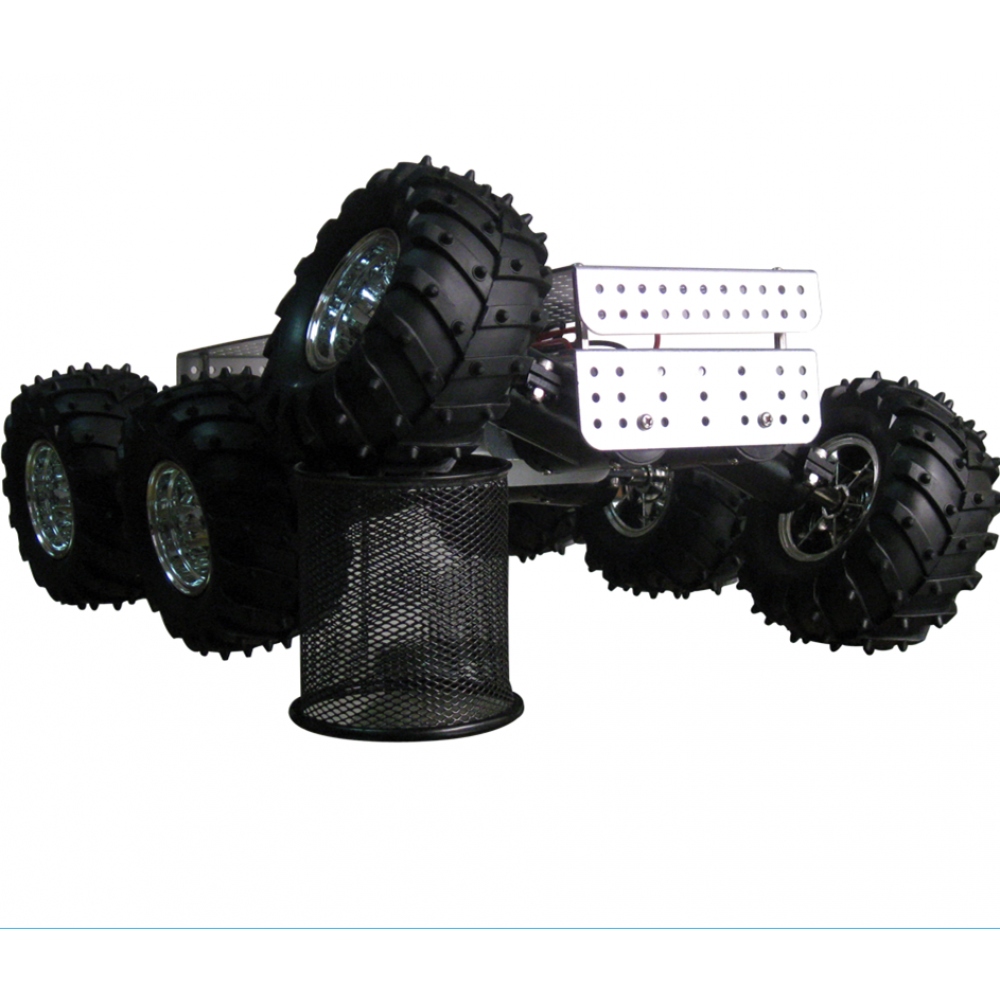

• Driving System: 6WD (Six-Wheel Drive) with independent "super-twist" suspension for each wheel, ensuring maximum traction and stability on uneven terrain

• Motor & Gearbox: 6 DC gear motors equipped with 75:1 steel gearboxes, delivering powerful torque for heavy-load and obstacle-crossing tasks

• Tires: 120mm diameter off-road anti-slip tires, suitable for various complex terrains such as grass, gravel, and muddy ground

• Dimensions: 425 × 300 × 120 mm

• Weight: Approximately 3.7 kg

• Maximum Payload: 6 kg (ideal for mounting controllers, sensors, or manipulators required for Robotcup events)

• Power Supply: 7.2 V DC (compatible with 7.2V or 7.4V NiMH/LiPo batteries)

• Certifications: CE (compliant with Low Voltage Directive) and ROHS (lead-free and environmentally friendly)

Key Features

1. All-Terrain Mobility: The six-wheel drive system paired with independent suspension ensures that each wheel maintains contact with the ground, providing exceptional stability and passability on rough, bumpy, or sloped surfaces. It can easily traverse grass, gravel, small obstacles, and even light snow, making it perfect for Robotcup rescue and soccer challenges[6].

2. Competition-Grade Performance: The 75:1 gear ratio delivers high torque while maintaining controlled speed (approximately 3 km/h at 7.2V), which is optimized for Robotcup tasks that require precise movement, heavy payload support, and obstacle negotiation. Each motor provides a stall torque of approximately 11 kg-cm at 7.2V, ensuring strong traction and load-bearing capacity.

3. Education-Friendly Design: Standard mounting holes are compatible with mainstream controllers such as Arduino and Raspberry Pi, allowing easy integration of sensors, mechanical arms, cameras, and other accessories. It is an ideal platform for students to learn robotics programming, mechanical assembly, and autonomous control, bridging the gap between theoretical knowledge and practical application.

4. Durable & Reliable Construction: The 2mm thick anodized aluminum chassis is corrosion-resistant and impact-resistant, capable of withstanding the wear and tear of competitive use. All hardware components, including nuts, bolts, and gearbox parts, are made of high-quality materials to ensure long-term reliability in intensive training and competitions.

5. Certified for Global Use: CE certification ensures compliance with European safety standards, while ROHS certification guarantees that the product is free from harmful substances, making it suitable for educational institutions and competitions worldwide.
