The DAGU 6WD Wild Thumper Chassis is a high-performance mobile platform for educational robotics, STEM and maker projects. With a silver anodized aluminum body and 6 high-torque 34:1 gearbox DC motors, it offers stable all-terrain performance, paired with 120mm off-road tires and independent "Super Twist" suspension for superior traction. Its durable 2mm aluminum body and stainless steel fasteners ensure long service life, while universal mounting holes enable easy integration of controllers (Arduino, Raspberry Pi, STM32) and accessories. Fully CE and RoHS certified, it suits educational, commercial and global use, ideal for STEM projects, robot prototyping and DIY makers. The package includes the chassis, 6 gearmotors, 6 tires, assembly hardware and manual; controllers, sensors and other electronics are sold separately.
$252.99
Quantity
Add to Cart
BUY
+8615019528638
QR code
Delivery to
Please add the address first.
Cost To Ship: ~$0.00
Payments
Easy access to support
Easy access to support
Thils is a case that cllent can write it themselves and also can say nothings
Prev: DAGU educational robot 6WD wild thumper chassis (Black body with 34:1 gearbox) for Robotcup CE certificate ROHS
Next: DAGU educational robot 6WD wild thumper chassis for Robotcup (Black body with 75:1 gearbox)CE certificate ROHS
Specifications
Code
：
RS003S34
Brand
：
DAGU
Detail

DAGU Educational Robot 6WD Wild Thump

er Chassis (Silver Body, 34:1 Gearbox)

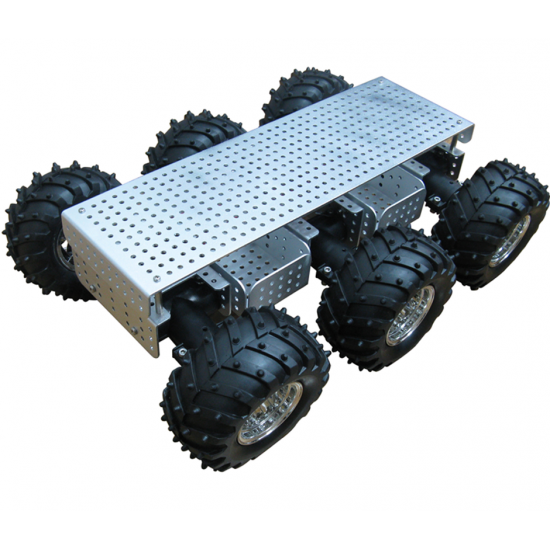

The DAGU 6WD Wild Thumper Chassis is a high-performance, durable mobile platform specifically designed for educational robotics, STEM projects, and maker applications. With its silver anodized aluminum body and 34:1 metal gearbox, it combines reliability, off-road capability, and easy expandability, making it an ideal choice for students, educators, and hobbyists alike. This product is fully compliant with CE (LVD/EMC) and RoHS standards, ensuring safety and environmental friendliness.

Key Features

  • 6-Wheel Drive (6WD) System: Equipped with 6 high-torque DC gearmotors featuring a 34:1 metal gearbox, providing strong power and stable performance for all-terrain movement.

  • Durable Construction: 2mm thick anodized silver aluminum body, paired with stainless steel fasteners, offers excellent corrosion resistance and long service life, capable of withstanding the rigors of educational and experimental use.

  • All-Terrain Adaptability: 120mm spiked off-road tires and independent "Super Twist" suspension ensure superior traction and stability on uneven, rough, or bumpy surfaces, adapting to various complex environments.

  • Easy Integration: Universal mounting holes on the chassis allow flexible installation of controllers (Arduino, Raspberry Pi, STM32), motor drivers, sensors, batteries, and other accessories, simplifying robot assembly and customization.

  • Certified Compliance: Meets CE and RoHS standards, suitable for educational institutions, commercial projects, and global markets.

Core Specifications

Parameter
Specification
Model
RS003S34 (Silver Body, 34:1 Gearbox)
Dimensions
420 × 300 × 130 mm
Net Weight
Approx. 2.7 kg
Motor Type
6 × DC Gearmotors (34:1 metal gearbox)
Motor Performance (7.2V)
No-load speed: 350 RPM; Stall torque: 5 kg·cm; No-load current: 420 mA; Stall current: 6.6 A
Maximum Load
5 kg
Tire Size
120mm diameter (spiked off-road tires)
Material
2mm anodized aluminum body, stainless steel fasteners
Certifications
CE (LVD/EMC), RoHS

Applicable Scenarios

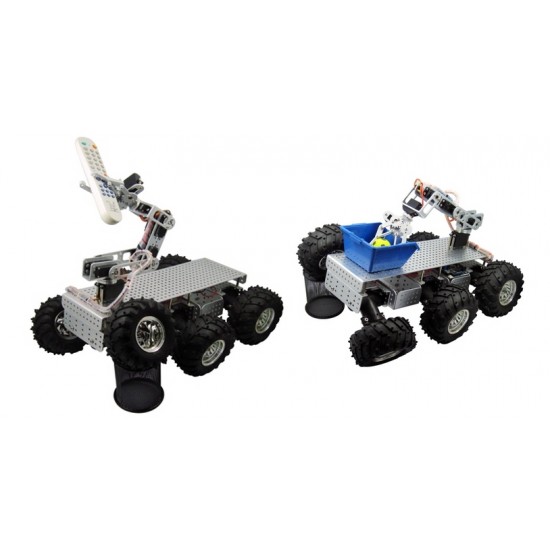

This 6WD chassis is perfect for a wide range of applications, including: STEM education projects, educational robot kits, mobile robot prototyping, outdoor environmental monitoring, small-scale surveillance rovers, and DIY maker projects compatible with mainstream open-source controllers.

Package Content

1 × DAGU 6WD Wild Thumper Chassis (Silver Body), 6 × 34:1 DC Gearmotors, 6 × 120mm Spiked Off-Road Tires, Full Set of Assembly Hardware, and User Manual.
Note: Controllers, motor drivers, sensors, batteries, and other electronic components are not included and need to be purchased separately.
