micro:bit Board ROHS

micro:bit Board ROHS
micro:bit Board ROHS
micro:bit Board ROHS
micro:bit Board ROHS
micro:bit Board ROHS
micro:bit Board ROHS
micro:bit Board ROHS
$19.60
  • Stock: In Stock
  • Model: micro:bit
  • Weight: 0.08kg

Introduction

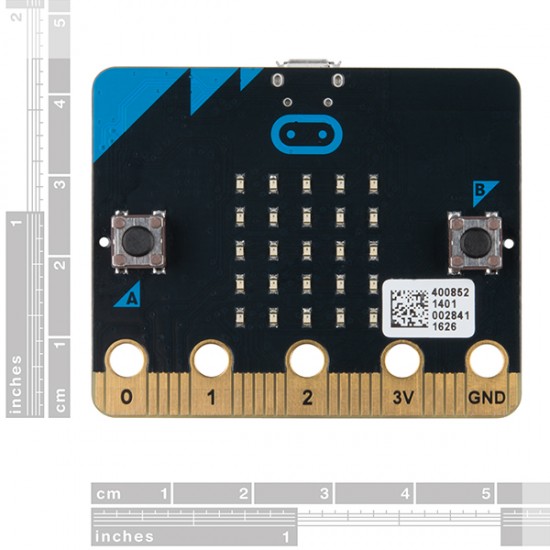

micro:bit is a pocket-sized microcontroller designed for kids and beginners learning how to program, letting them easily bring ideas into DIY digital games, interactive projects and robotics.

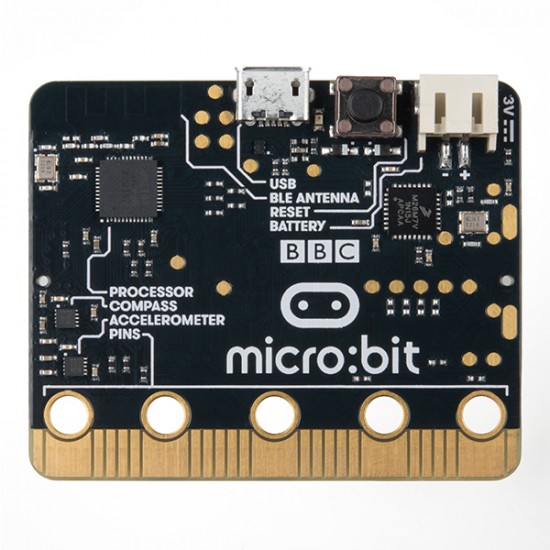

micro:bit comes with a variety of on-board modules, including a 5x5 LED matrix (also supports light detection), 2 programmable buttons, motion detector, Compass and Bluetooth® Smart module. Additionally, you may attach more modules such as a servo motor, RGB LED lights through 5 I/O rings or 20 edge connectors.


micro:bit can be programmed with Microsoft Block Editor via graphical editor or JavaScript editor. The Microsoft Block Editor is available on Windows, macOS, IOS and Android, supporting wireless programming via Bluetooth.


Features

A variety of on-board modules;

Expandable for additional sensors or actuators;

Graphical drag and drop code editor;

Easy and smooth program uploading;

Bluetooth wireless programming uploading;

Bluetooth wireless communication.


Specifications

Microprocessor: 32-bit ARM Cortex M0 CPU.

A 5*5 LED matrix with 25 red LEDs to light up and can display animated patterns, scrolling text and alphanumeric characters.

Two programmable buttons.

On-board motion detector or 3-Axis digital accelerometer that can detect movement e.g.shake, tilt, or free-fall and use it to control motion activated games.

A built-in compass, 3D magnetometer to sense which direction you're facing and your movement in degrees and detected the presence of certain metals and magnets.

Bluetooth Smart Technology. Connect the micro:bit to other micro:bits, devices, phones, tablets, cameras and other everyday objects.

20 pin edge connector: This allows the micro:bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard controller.

Micro-USB controller: This is controlled by a separate processor and presents the micro:bit to a computer as a memory stick.

Five Ring Input and Output (I/O) including power(PWR), ground(GRD) and 3* I/O. The micro:bit can read values from sensors and control things like motors or robots.

System LED*1 (yellow).

System push button switch*2.
