IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube

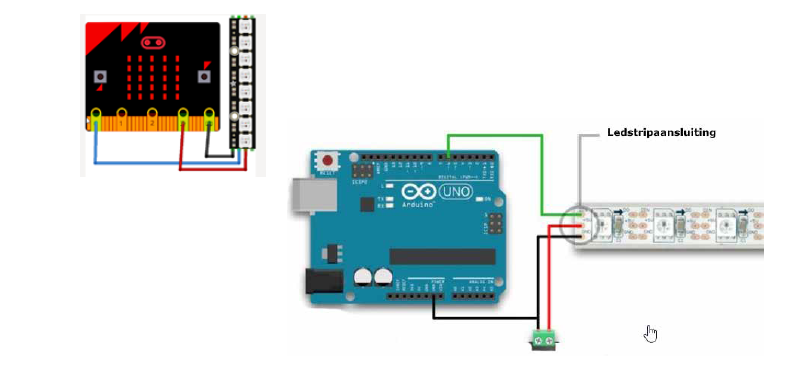

WS2812B Led Strip Work With DC5V, And it needs a WS2812B Led Controller Control it!
If a chip is about 0.3w, if you buy is 5m 30led (total led strip is 150leds), so 5m 30 led strip is 0.3w * 150 = 45w
And this led strip is 5 v, so 45 w / 5 v = 9A, we can calculate this led strip better at least 9A ......
1) WS2812B Led Strip is Powered By "5v Power Supply" (Not Included) And Is Controlled By A Single Data Line Of A Suitable Controller (Not Included).
2) 3-Pin JST Connector Included: Red: VCC, Blue: GND, Green: DATA.
3) the Strip has 3 m Adhesive Tape On the Back (EBehoudens alternating Ip67). Installation Surface Must Smooth, Clean And Dry.
4) Led Strip Can Be Cut Between Each Led To Custom Lengths.
5) Not Bend Strip Sharp.
6) longer Runs Should Be Fed Off Both Ends Reduce Voltage Drop.
7) 3-Pin JST Connector Wire is 20AWG.
Input voltage: DC5V
Power: 30 LEDs / m ---- 9 watts / meter
60 LEDs / m ---- 18 watts / meter
74 leds / m ---- 22.2 watts / meter
96 leds / m - 28.8 watts / meter
144 leds / m ---- 43.2 watts / meter
LED source: WS2812B led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: each LED is individually checked
IC Type: upgraded version ws2812 IC (built within the 5050 smd rgb led)
From IC: 1 IC drives 1 led chip
Pixels: 30/60/74/96/144 / meter
Pitch: 16.6mm (1000/64)
Gray scale: 256
Bits / color: 8-bit / color
FPC Width: 30 LEDs / m ---- 10mm
60 leds / m ---- 10mm
74led / m --- 12mm
96led / m --- 12mm
144 leds / m ---- 12mm
FPC color: black / white
Protection rate: IP30 / IP65 / IP67
Colors: Full color RGB, dream color changing
Cuttable: every LED is cutable
Package: in anti-static bag, IP30 IP65 with 3 m adhesive tape on the back (IP67 without 3 m adhesive)
