Motor :48V DC brushless motor
Working temperature :-20 ° C to 60 ° C
Rated power:880W * 2
Rated torque:36NM
Running speed:0 to 1.6 m / s
Maximum obstacle clearance:220 mm
Maximum climbing:40 degrees (can climb the stairs)
size Dimensions:1020 * 730 * 440 mm
The size of the inside :600 * 320 * 240 mm
Chassis height:140 mm
Track width:150 mm
Ground length:740 mm
weight:120kg
Load:100 kg
Material:
wheel aluminum
Body Carbon steel
chain High-quality rubber embedded Kevlar fiber
Surface treatment Spray / part of the paint
Product Features:
(1) large supporting area, 150mm crawler grounding ratio of 75%, suitable for the soft, mud and other complex environmental operations, subsidence is small, rolling resistance
Small force, good off-road mobility.
(2) a very small radius of the steering, you can achieve situ turn.
(3) track surface support teeth, not easy to slip, traction adhesion performance is conducive to play a larger traction.

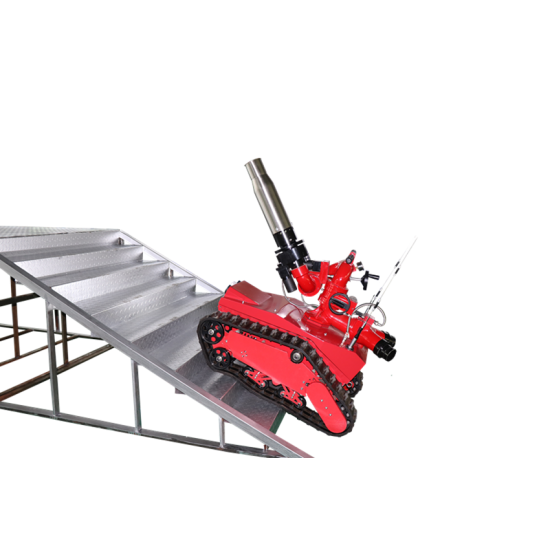

(4) chassis height of more than 140mm, with super climbing, obstacle capacity, can climb the stairs.
(5) body shell with 2mm 304 stainless steel, durable, the overall protective performance, deep like the majority of customers.
