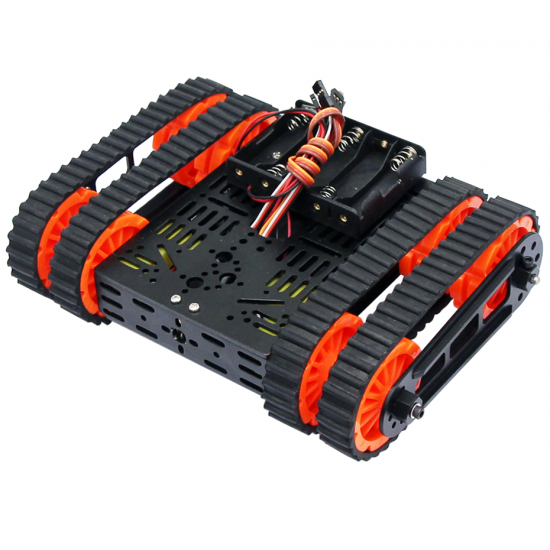

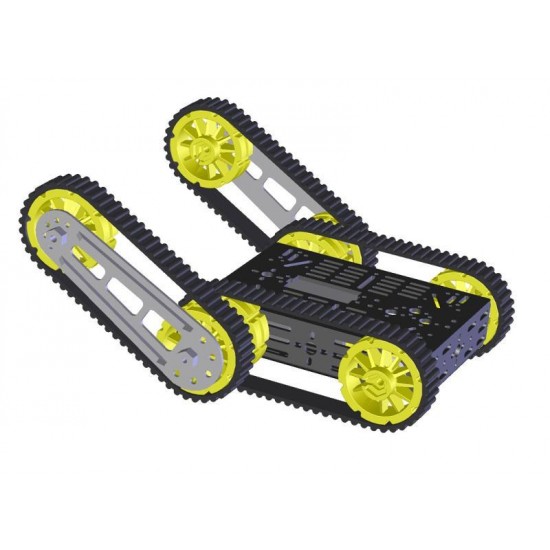

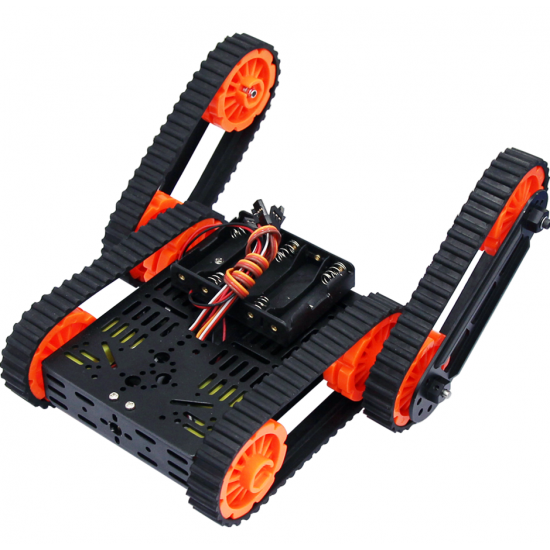

Multi chassis_Tank (Rescue vehicle) ROHS

Multi chassis_Tank (Rescue vehicle) ROHS
  • Stock: In Stock
  • Model: DG012-RP
  • Weight: 1.50kg
  • Dimensions: 262.00cm x 222.00cm x 60.00cm

Size: 262*222*60cm( length*width*height )

Wheel diameter:Φ52MM Track wheel :8pcs

DG01D 48:1 DC Motor:2pcs (Metal output shaft)

NET Weight:800g

Max load:7.5KGS(on the ground,1100mAh 10C 8.14WH,7.4V li-battery test)

Max load (not moving status):50KGS(Stable structure)

Suggested terrain: Flat mattess, ground, smooth ceramic tile, lawn,

Can run in a deeper lawn or terrible sand ground.


This chassis is designed with robotic top-level climbing structure and device,262mm length ,which can climb over footstep up to 150mm height.

Just as small thing can handle big deal,this is the reason why robot hobbyists love it.

Voltage:6-9V(7.2V Li-battery is idea)

Video visit:
