The omni wheel rolls like a normal wheel and is almost frictionless and laterally gliding (it can't slip when turning).
Applying this kind of omnidirectional wheel can make your robot turn steadily or build a complete power transmission system.
Each omnidirectional wheel can operate independently, with multiple wheels and a compact layout providing extra mobility.
Selected high-quality plastics, using laser cutting, welding, stamping, threading and other processing. The omnidirectional wheel of plastic structure is resistant to impact, corrosion, high heat resistance, non-toxic and tasteless, smooth and beautiful surface, low density and light weight.
Make the omnidirectional wheel truly horizontal movement, flexible and smooth, perfect to achieve the omnidirectional wheel sports performance.
According to the user's needs, it can meet the specific load and design.

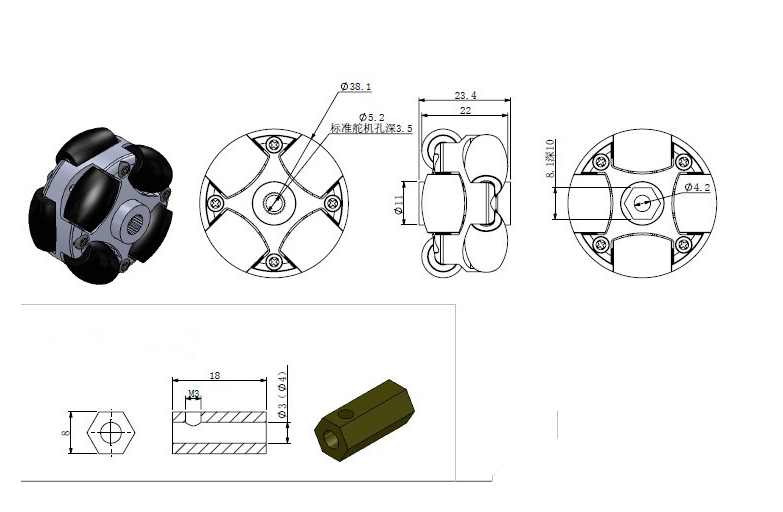

Technical Specifications:
Diameter: 1.5inch (38mm)
Width: 23.4
Body material: plastic plastic
Net weight: 20g
Roller material: plastic
Number of wheels: 8
Load: 2kg
Compatible Copper Column Couplings Dimensional Links:
1.38mm plastic omnidirectional wheel supporting the use of 3mm hexagonal copper column coupling
2.38mm plastic omnidirectional wheel supporting 4mm hexagonal copper column coupling
Application
Based on omnidirectional wheel technology, suitable for service robots, trolleys, transfer conveyors, suitcases, etc., omni-directional wheels will provide perfect performance that can replace integrated or conventional wheels.
