Micro:bit Expansion board Magician:bit

$14.50
Brands DAGU
Product Code: MB012
Availability: 99

Magician:bit

Micro:bit expansion board

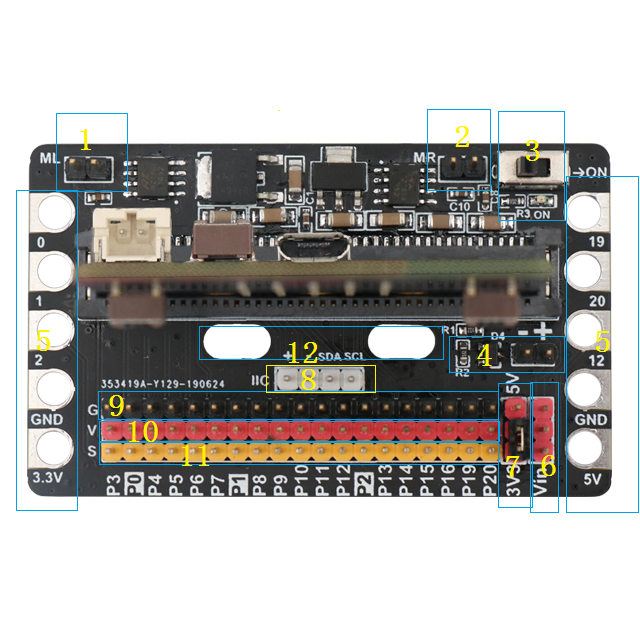

1 :Left motor drive interface, motor drive maximum support 3A

2 :Right motor drive interface, motor drive maximum support 3A

3: Power switch and indicator light, turn on bright red

4: Power input interface, minimum 6.4V, maximum 8.4V, with anti-backconnection protection

5: Crocodile Clamp Interface

6: Battery Voltage Interface

7: Selection of power supply, jumper cap, upper 5V and lower 3.3V

8:I2C interface

9:GND

10: When 7 chooses how much V, the output voltage is the selected voltage.

11: IO interface

12: Fixed hole
