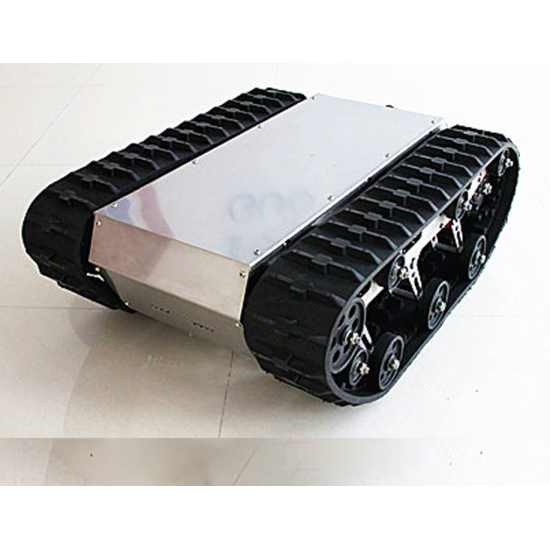

DGCH025 Metal tank chassis ROHS

DGCH025 Metal tank chassis ROHS
  • Stock: In Stock
  • Model: DGCH025
  • Weight: 120.00kg

Motor :48V DC brushless motor

Working temperature :-20 ° C to 60 ° C

Rated power:650W * 2

Rated torque:30NM

Running speed:0 to 1.4 m / s

Maximum obstacle clearance:220 mm

Maximum climbing:45 degrees (can climb the stairs)

size Dimensions:1000 * 750 * 340 mm

The size of the inside :600 * 300 * 230 mm

Chassis height:90 mm

Track width:150 mm

Ground length:520mm


Load:75 kg


wheel aluminum

Body   Carbon steel

chain  High-quality rubber embedded Kevlar fiber

Surface treatment  Spray / part of the paint


Product Features:

(1) equipped with 650W DC brushless motor with reducer to provide a strong driving force, the chassis height of more than 90mm can load obstacle, climbing stairs.

(2) a very small radius of the steering, you can achieve situ turn.

(3) The track surface is not easy to slide on the support surface, traction attachment performance, independent suspension design, the chassis car driving more smoothly.

(4) large internal storage space, can carry more equipment.

(5) versatility, support the development of non-standard product customization.
