Multi chassis_4WD KIT(basic version) ROHS

Multi chassis_4WD KIT(basic version) ROHS
  • Stock: In Stock
  • Model: DG012-BV
  • Weight: 1.50kg
  • Dimensions: 165.00cm x 157.00cm x 65.00cm

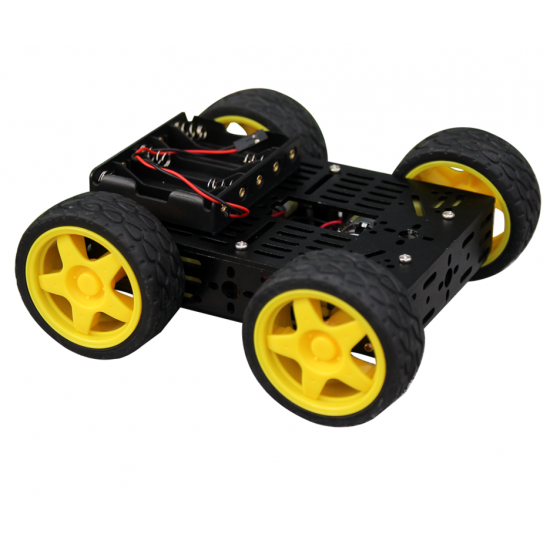

4-Wheel robot chassis: a high-performance kit you assemble yourself

This is the "basic"version of the Dagu mobile robot chassis, which doesn't mean it's lacking in terms of performance!

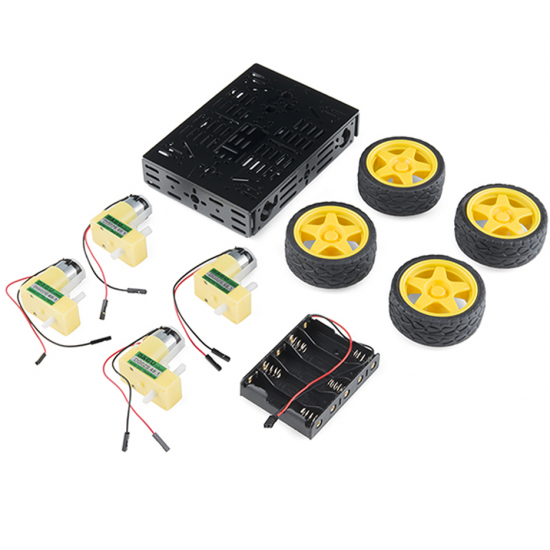

It consists of an aluminium frame that's as robust as it is light, 4pcs 48:1 gearmotors with a plastic shaft and a set of 4 rubber wheels measuring 65mm in diameter, just the right size for agruelling race!


The DG012-BV Multi-chassis 4WD kit comes with all the necessary mounting accessroies, including screws, bolts, a screwdriver and a spanner. There's also a holder for 5 AA batteries (which are not included in this kit) for powering your gearmotors.


Dagu flat mobile robot chassis: improve your robot!

The Dagu flat mobile robot chassis is particularly suitable for flat and slightly rugged terrain. It also works on lawns, provided the grass is neither too thick nor too long.


Please note that if you're looking for a chassis for an all-terrain robot, you should probably opt for the ATV version, which is another model in the Dagu series.


Once assembled, this chassis can accommodate all the accessories you can thinks of to improve your robot's performance and autonomy, for example sensors, actuators and controlllers.


Simply choose any of the large number of slots designed for attaching your robotics accessories. The basic version of the 4WD chassis can be an excellent explorer on flat ground, a line-following robot or a great racer for taking part in competitions!


Technical specifications of the DG012-BV Multi-Chassis by Dagu

1. Dimesions: 165*157*65mm

2. Net weight: 480g

3. Operating voltage: 6~9V (a LiPo 7.2/7.4V battery is ideal)

4. 4 high-quality racing wheels (rubber)

5. Wheel diameter: 65mm

6. 4 DC motors with 48:1 gearmotor and plastic shaft

7. Maximum load:

           On the move: 2kg

           Stationary: 9kg (on stable support)

8. Suggested terrain: bitumen, earth, smooth ceramic tiles, short grass (deep lawns and sand are to be avoided)

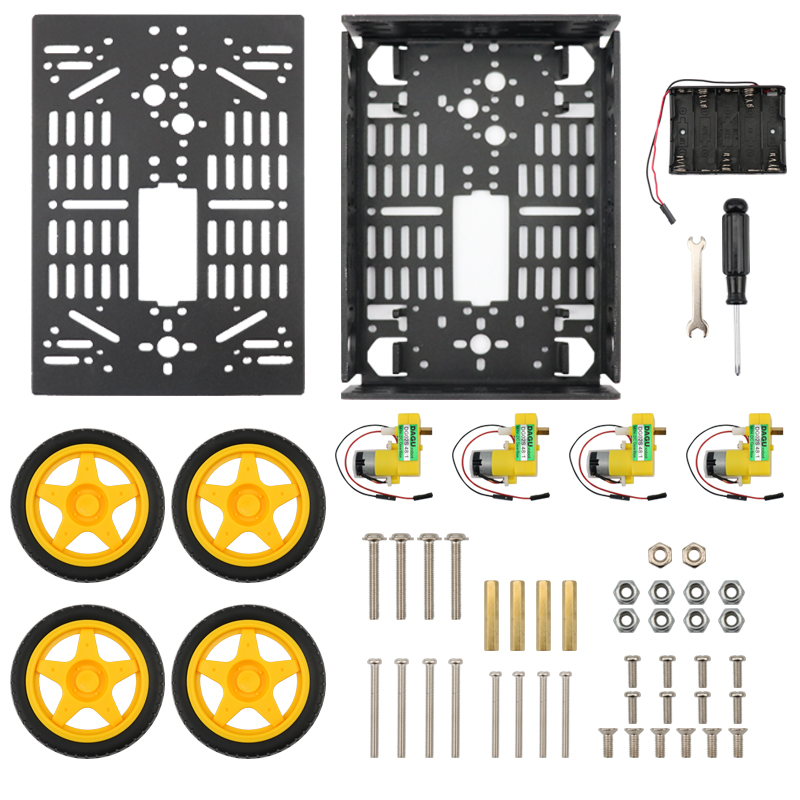

The kit includes:

1. 1*aluminium frame

2. 4*M3 25mm screws

3. 6*M3 8mm screws

4. 4*M2.5 25mm screws

5. 4*2.5 20mm screws

6. 8*M3 8mm screws

7. 8*M2.5 nuts

8. 2*M3 nuts

9. 1 holder for 5 AA batteries

10. 1 spanner
