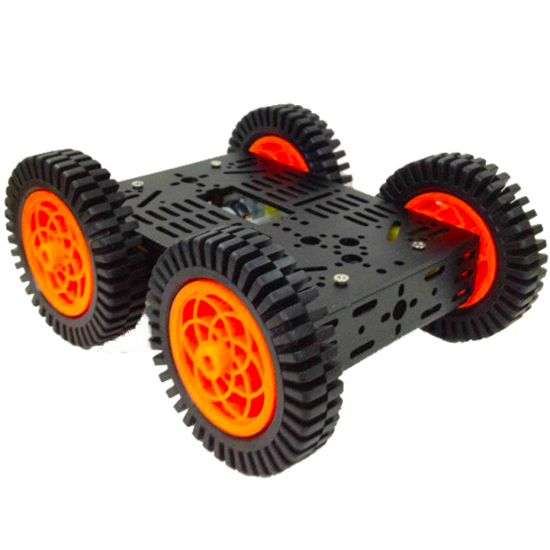

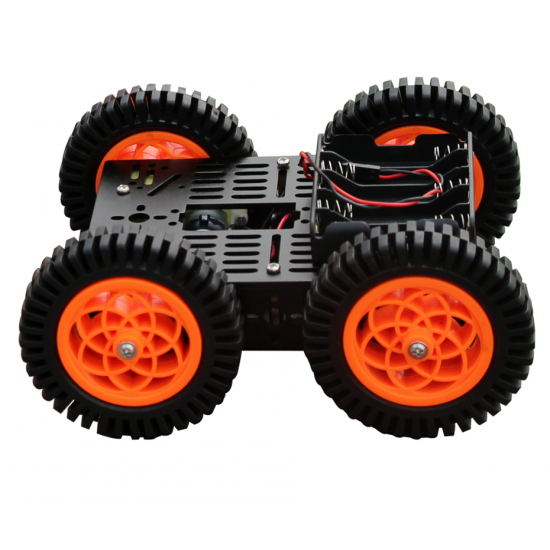

Multi chassis_4WD KIT (ATV version) ROHS

Multi chassis_4WD KIT (ATV version) ROHS
  • Stock: In Stock
  • Model: DG012-ATV
  • Weight: 2.00kg
  • Dimensions: 160.00cm x 135.00cm x 60.00cm

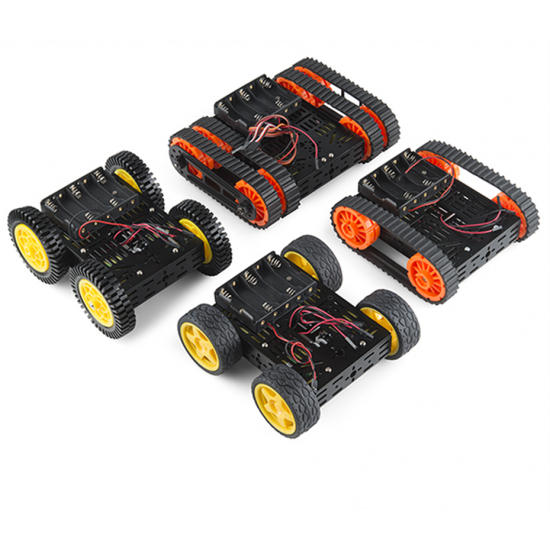

DG012-ATV Multi-Chassis 4WD Kit (ATV Version): a scalable all-terrain mobile robot



After assembling your robotics kit, you'll find it very easy to add a variety of sensors and accessories to the platform for a truly scalable exploration chassis, for example a radio receiver, a camera, environmental sensors or an audio recodrding system, whatever you wish!


This is because your aluminium chassis is equipped with numerous fixation points for attaching controllers, sensors and drivers to imporve the performance and versatility of your robotics creation.


Technical specifications of the DG012-ATV Chassis


The DG012-ATV contains:

  1* Aluminum Frame

  4* 48:1 DC Gearbox

  4* 78mm Diameter High-Profile Wheel

  4* M3 25mm Standoff

  6* M3 8mm Screw

  4* M2.5 25mm Screw

  4* 2.5 20mm Screw

  8* M3 8mm Screw

  8* M2.5 Nut

  2* M3 Nut

  1 holder for 5 AA batteries

  1 spanner

  1 screwdriver


Dimensions of the assembled kit: 178*135*78mm

Wheel size: 78mm Diameter

Wheel number: 4 piece (Rubber surface)

Supply: 6~9V DC (7.2V DC recommended)

Working load: 2kg max.

No-load speed: 320rpm @7.2V DC

No-load consumption: 140mA

Motor: 4 piece Dagu 48:1 DC gearboxes (6~9V, drive current: 850mA, stall current: 2A)

Torque per motor:

Video visit:
