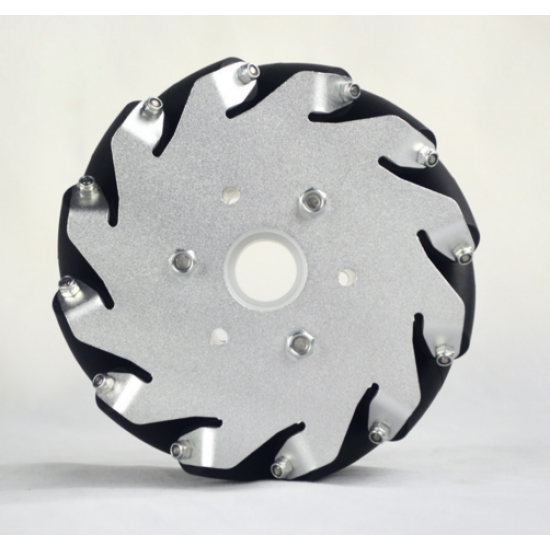

The Nexus range of McNam wheels introduced a lightweight 127mm 45° caster with a series of rollers attached to its perimeter. The number of rollers, the profile of the rollers, the hub engineering and the diameter of the wheels are the key to a well-designed McNam wheel. Each type of caster has two rolling bearings embedded in each driven sheave, which is manufactured using a high-precision process. The continuous improvement of the universal wheel product has controlled the axial gap of the driven wheel to be within a very small range, and is particularly suitable for the drive applications of various small robots.
The omni-directional motion equipment based on the McNaum Wheel technology can realize the forward movement, lateral movement, oblique movement, rotation and combination thereof. On this basis, the all-round transportation platform is very suitable for an environment with limited space for transportation and a narrow working channel, which has a significant effect in improving the efficiency of transportation support, increasing space utilization, and reducing labor costs.
Product specification:
Width: 51 mm
Diameter: 127 mm
Number of rollers: 12
Number of sheets: 2
Body material: aluminum alloy
Roll material: Polyurethane
Net weight: 500g*4
Load capacity: 45KG
