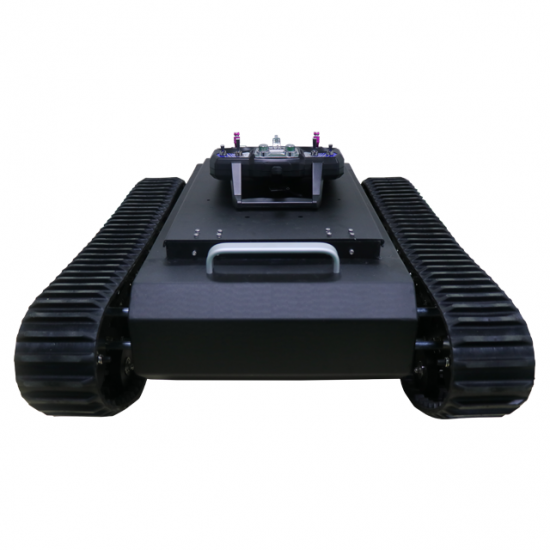

DGCH500 stainless steel caterpillar shock absorber tank chassis ROHS

DGCH500 stainless steel caterpillar shock absorber tank chassis ROHS
DGCH500 stainless steel caterpillar shock absorber tank chassis ROHS
$2,000.00
  • Stock: In Stock
  • Model: DGCH500
  • Weight: 21.00kg
  • Dimensions: 69.00cm x 54.00cm x 28.00cm

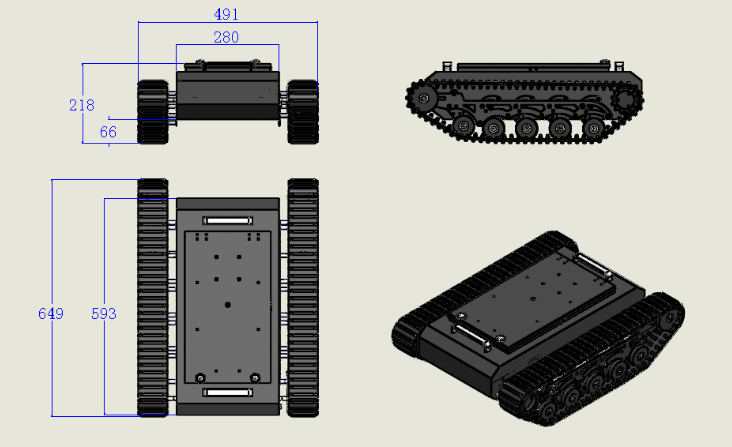

Dimensions: 649*491*218mm

Inner bin size: 383*276*126mm

Tank bare weight: about 14.25KG

Operating speed: 0-1m/s (operating speed depends on motor speed voltage)

Tank motor: DC brush motor

Rated power: 120W*2 by default

Rated voltage: default voltage 24V

Rated current: starting current is 10A, running current is about 5A)

Track width: 80mm

Track material: rubber track, built-in tension layer

Body material: 2mm aluminum alloy

Surface treatment: electrostatic baking finish

Maximum climbing: 40°

Maximum load: 50KG default configuration

Life time: 60 minutes

Default configuration

Maximum obstacle: 130mm

Shock absorption design: 10 sets of independent suspension shock absorbers



Instructions for Control Board of Medium Tank Platform Vehicle

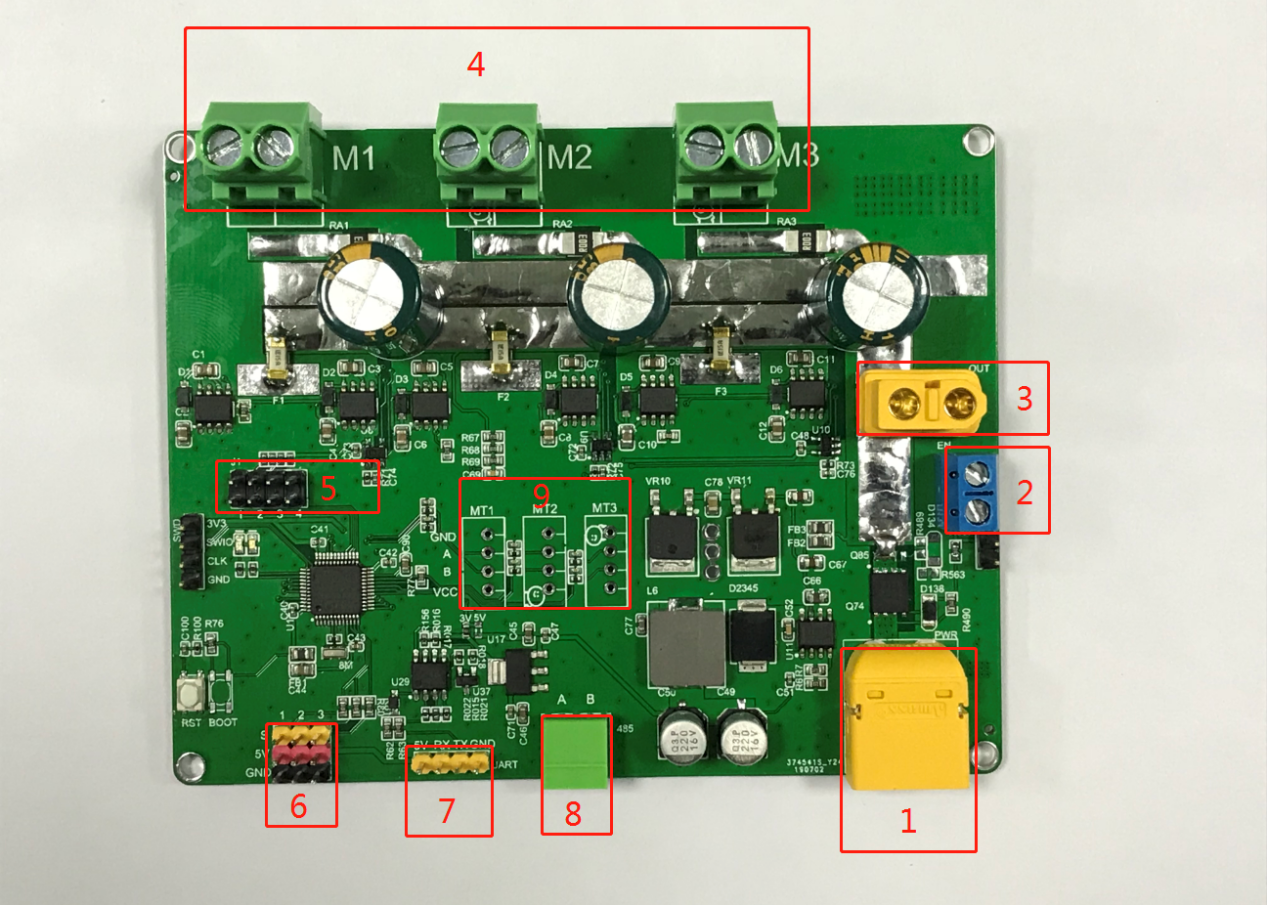

Control Board Interface Description:

Interface description



Interface name

Maximum

minimum

1

Power input

32V/100A

12V

2

switch

-

-

3

Power Output

32V/100A

12V

4

Motor output

32V/10A

0V

5

Input mode

3.3V

0V

6

PWM/Potentiometer input

5V

0V

7

serial ports

5V

0V

8

485input

12V

-7V

9

Motor encoder interface

5V

3V

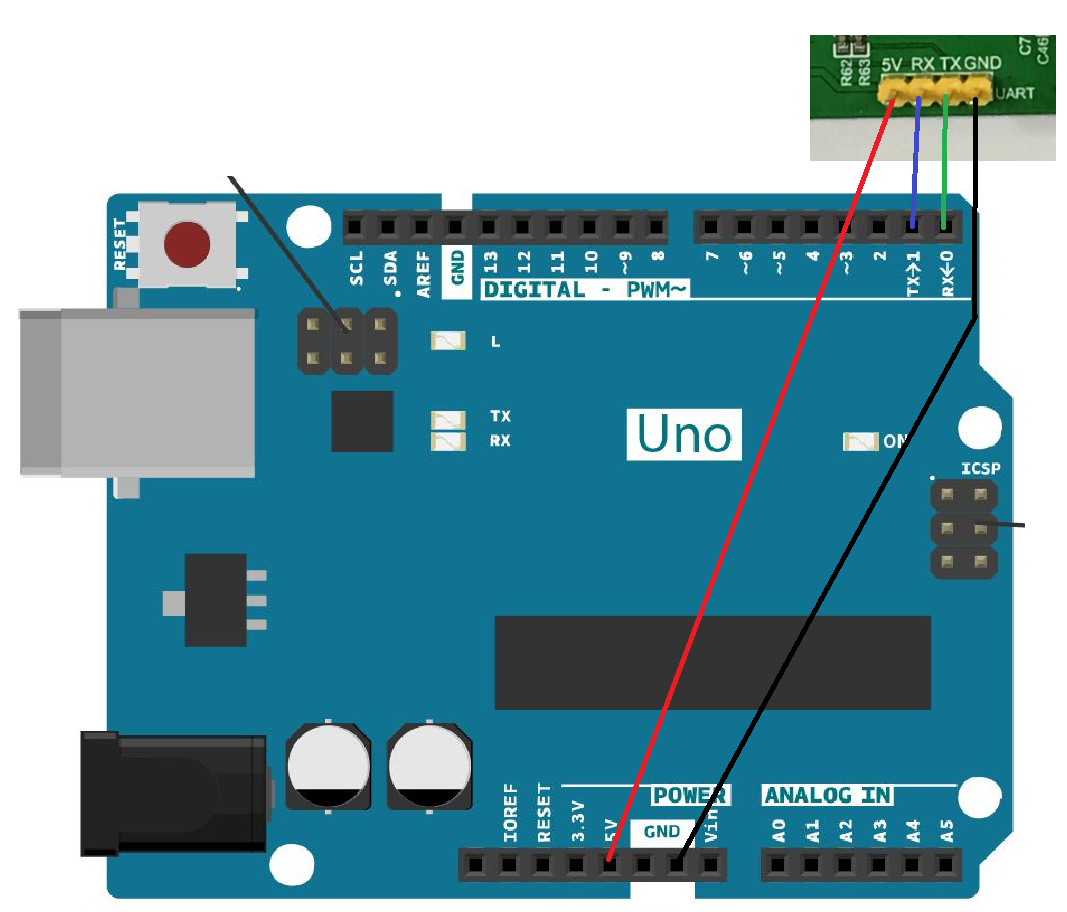

Arduino connection method:


Arduino

Driving board

5V

5V

TX

RX

RX

TX

GND
